Detailed Information - Performance - Case Order Form - Complete Systems


Case Order Form - Select your custom options

Faceplate Color

Silver faceplate

Black faceplate

The aluminum case and all aluminum brackets are treated by an anodizing process for corrosion protection and a long lasting uniform finish. The rear portion of chassis is black anodized. The faceplate and buttons can be either black or silver.
Silver faceplate
Black faceplate
Faceplate Logo Graphics





The Faceplate can include custom graphics and lettering during the anodizing process. Graphics can include company logo, button labels, system specs, and warning labels. Artwork to be provided by customer. Artwork should be in a vector format for best results. Preferred file format is PDF or Adobe Illustrator.

Approximate minimum pricing per job:

  • Single color artwork ($150)
  • Two color artwork ($200)

Contact A-Tech for price quote. Normally we can run several faceplates for the same minimum charge or a small nominal fee per extra plate.

No Logo

With single color logo graphics - add $150
With two color logo graphics - add $200

Slim-line Slot-load

Slim-line, Slot-loading drive

Faceplate is machined to fit a standard 12.7mm slim-line slot-load optical drive. Includes machined eject button, drive mounting brackets, and hardware.

Compatible with all Slim-Line, Slot-Load drives

Note: Purchase a optical drive from us with your case (see 'Case Accessories' below order form) or enter the drive model you plan to install below so that we can match the eject button location on faceplate. Usually there are two eject types; left-side (most common) and right/center

Specify the optical drive being installed:



Select Faceplate Style:

Slim-line Slot-load

With no drive slot or mounting - deduct $20



Rack Mount

Rack Mount Faceplate

(1U case shown for example)

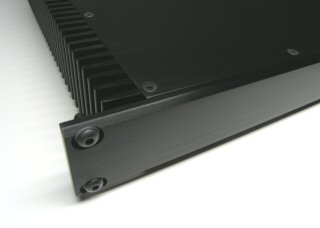

The case can be ordered with a one-piece rack mount faceplate which incorporates the rack mounting into the wider faceplate for a seamless look. The overall width of the faceplate is 19". Oval mounting holes are recessed and centered at 18.312". Faceplate height is 3.50" or rack size 2U.
No rack mounting
With one-piece rack mount faceplate - add $75
IR Receiver Mounting

IR Receiver Sensor



Faceplate is machined with a very small sensor opening for a infrared receiver. Two types of IR receivers are available.

The CIR receiver works well with Intel motherboards that include a 2x4 CIR header, some other MB's may also include this header. The CIR has a 5V stand-by power circuit which allows the system to be powered up and down depending on the remote control and how the power button functions.

The USB receiver attaches to a USB 2.0 header on the MB. Works with all MB's. Since the USB port powers down with MB, this sensor will only allow sleep mode.

Includes: IR receiver and internal cable. Both IR receivers work with all Windows versions, no drivers are required.

No IR receiver mounting
With CIR receiver - add $35

With USB receiver - add $30

IR Remote Control

IR Remote Control



This Windows Media Center remote control works with both IR receivers. It has all the basic Media Center control buttons and is compatible with all Windows versions, no drivers are required.

No IR Remote Control
With IR Remote Control - add $20

USB Port



USB Port



Face plate can be machined with cutout to fit a USB port adapter. Select between standard USB 2.0 or the new USB 3.0 port. Internal cable plugs into the USB header on your motherboard. USB 3.0 requires your MB to have a special 2x10 USB 3.0 header. Dual port design has two ports side by side.

No USB Port
With single USB 2.0 Port - add $20

With dual USB 3.0 Ports - add $45

Hard Drive Mounting

2.5" HDD/SSD Mounting

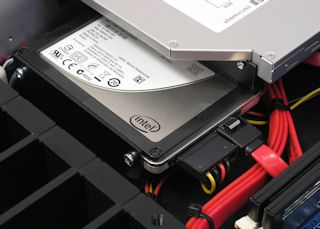

Multiple hard drive mounting options are available, including up to four 2.5" drives or one 3.5" drive with one 2.5" drive located above the optical drive. The 3.5" HDD mount includes vibration isolators to reduce drive noise. The 2.5" brackets can accept two 2.5" drive up to 15mm tall. The brackets attach to the bottom panel allowing for easy removal.



No Drive mounts

Mounting for (2) 2.5" HDD  $15

Mounting for (4) 2.5" HDD  $30

Mounting for (1) 3.5" HDD  $20

Mounting for (1) 3.5" HDD and (1) 2.5" HDD  $35

HeatSync® Cooling System -MB



HeatSync® Cooling System

The HeatSync® Cooling System eliminates the need for fan cooling of the processor, this greatly increases system reliability. With our cooling system installed, heat from the processor is transferred into the heatsink case for dissipation to the outside air. Since the heat is directed outside of the case, this reduces the temperatures inside of the case. On some motherboards, a separate HeatSync® system can also be installed on the chipset.

Includes:

  • HeatSync base assembly for processor
  • Custom bent and pre-fitted heat pipes
  • 95watt CPU, 3-heatpipes
  • 65watt CPU, 2-heatpipes
  • Aluminum clamping plates for heatsink case
  • HeatSync mounting hardware
  • Installation instructions
Note: Below is a list of popular motherboards, but most mini-ITX motherboards are supported including AMD and Intel mobile socket's. There are too many for us to list, if your MB is not listed, just select the "other motherboard" option and enter the model you wish to use.

No CPU HeatSync® Cooling System

Asus Z87i-Deluxe (84w CPU) - add $150 <--New Haswell MB

Asus H87 (84w CPU) - add $150 <--New Haswell MB

Gigabyte GA-Z87N-wifi (84w CPU) - add $150 <--New Haswell MB

ASRock Z87E-ITX  (84w CPU) - add $150 <--New Haswell MB

Intel DH77DF (95w CPU) - add $150

MSI FM2-A75IA-E53 (65-100w CPU) - add $150

ASUS P8Z77-I Deluxe (95w CPU) - add $150

ZOTAC Z68-ITX-B-E (65w CPU) - add $120



Other motherboards not listed - add $150



Chipset HeatSync Cooling System

Chipset HeatSync Cooling System

Chipset HeatSync Cooling System

Custom HeatSync® Cooling System specifically designed for selected motherboards. Transfers heat from the video processor and/or motherboard chipset into the heatsink case. Reduces chipset temps by 20-30C compared to stock heatsink.

Each system includes:

  • HeatSync® base for processor
  • Pre-bent and fitted heat pipes
  • Aluminum clamping plates for heatsink case
  • Required installation hardware

No Chipset HeatSync

Asus Z87i-Deluxe Chipset HeatSync - add $60

Intel DH77DF Chipset HeatSync - add $60

Intel DH67CF Chipset HeatSync - add $60
Zotac Z68-B-E Chipset HeatSync - add $85

Machined Billet Aluminum Case Feet

Billet Aluminum Case Feet

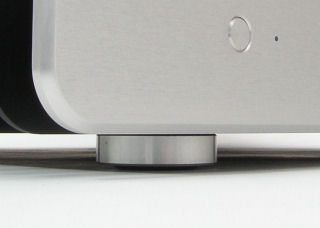

Enhance the appearance of your case with these beautifully machined billet aluminum case feet. The foot features a rubber insert on the bottom to prevent scuffing.

With Standard Rubber feet

With Black Aluminum Case Feet - add $20
With Silver Aluminum Case Feet - add $20

Shipping and Ordering Information

When will the case ship?

Standard lead time is 2-3 weeks depending on options and color choice.



Quantity Discounts?

Discounts are available on orders of two or more cases. Contact A-Tech Fabrication for more information.



HeatSync® 2800HP Mini-Client Case ... $649 + options

Please select options above before adding to cart. Before checking out, be sure to add any additional accessories below so that they can be shipped with your case.

NOTE: The HeatSync® 2800HP Mini-Client is also available as a complete, fully assembled and ready to run system, see Complete Systems for details. If you feel assembling this case looks more difficult than you care to handle, save time and let the experts at A-Tech Fabrication assemble it for you!

Case Accessories
Intel® Core™ i7 Haswell Processor
The 4th generation of Intel Core processors. With a 22 nanometer die size and new HD 4600 graphics, this low-power, high-performance quad-core processors is the perfect match for our HeatSync cases. See this page for more details - Intel Processors

Note: These are OEM processors packaged in bulk trays. They are not yet available as a retail boxed set. Stock heatsink fan cooler is not included.

Core i7-47700T
  • 2.5 GHz clock
  • 3.7 GHz Turbo Mode
  • Quad Core, 8 Threads
  • HD 4600 graphics
  • 45 watts

$339 each

Intel® Core™ i7 Ivy Bridge Processor
The 3rd generation of Intel Core processors. With a 22 nanometer die size and HD 4000 graphics, these new low-power, high-performance quad-core processors are the perfect match for our HeatSync cases. See this page for more details - Intel Processors

Note: These are OEM processors packaged in bulk trays. They are not yet available as a retail boxed set. Stock heatsink fan cooler is not included.

Core i7-37700T
  • 2.5 GHz clock
  • 3.7 GHz Turbo Mode
  • Quad Core, 8 Threads
  • HD 4000 graphics
  • 45 watts

$339 each

Intel® Core™ i5-2500 Series Processor
The 2nd generation Intel Core i5-2500 series low-power, high-performance processors. See this page for more details - Intel Processors

Note: These are OEM processors packaged in bulk trays. They are not yet available as a retail boxed set. Heatsink cooler is not included.

Core i5-2500S
  • 2.7 GHz clock
  • 850 MHz graphics
  • 65 watts

$269 each

Core i5-2500T
  • 2.3 GHz clock
  • 650 MHz graphics
  • 45 watts

$269 each

Arctic Silver 5 Thermal Compound

Made With 99.9% Pure Silver, Arctic Silver 5 uses three unique shapes and sizes of pure silver particles to maximize particle-to-particle contact area and thermal transfer. Arctic Silver 5 also contains sub-micron zinc oxide, aluminum oxide and boron nitride particles. These thermally-enhanced ceramic particles improve the performance and long-term stability.
  • 3.5 gram tube
  • Made in the USA
$9.75 each
Blu-ray reader/writer:

Blu-ray reader/writer



Slim-line SATA interface

The Blu-ray reader/writer is a slim-line, slot-load optical drive for playback and recording of CD, DVD, and Blu-ray discs. The SATA interface requires a special slim-line power/data cable sold below.

Specifications - Write/Read speeds:

  • BD-R 6x/6x
  • BD-R-XL 4x/4x
  • BD-RE 2x/2x
  • BD-ROM --/6x
  • DVD-RAM 5x/5x
  • DVD-R 8x/8x
  • DVD-RW 6x/6x
  • DVD+R 8x/8x
  • DVD+RW 8x/8x
  • DVD-ROM --/8x
  • CD-R 24x/24x
  • CD-RW 16x/24x
  • CD-ROM --/24x
$136.50 each
DVD reader/writer:

DVD reader/writer

Slim-line SATA interface

The DVD reader/writer is a slim-line, slot-load optical drive for playback and recording of CD and DVD discs. The SATA interface requires a special slim-line power/data cable sold below.

Specifications - Write/Read speeds:

  • DVD-RAM 5x/5x
  • DVD-R 8x/8x
  • DVD-RW 6x/8x
  • DVD+R 8x/8x
  • DVD+RW 8x/8x
  • DVD-ROM --/8x
  • CD-R 24x/24x
  • CD-RW 24x/24x
  • CD-ROM --/24x
$62.50 each
160 Watt DC-DC Power Converter

150 Watt DC-DC Power Converter

The picoPSU-160-XT is a compact high efficiency DC-DC converter that plugs directly into a 24-pin ATX MB connector. It features a built-in P4 power cable for the motherboard and a 4-pin Molex and SATA power connector for drives and accessories.
  • Over 96% efficiency
  • 24 pin ATX connector
  • 12 volts DC input
  • 160 watts output
  • 8A @ 12V
  • 8A @ 3.3V
  • 8A @ 5V
  • MTBF = 200,000 hours at 75C deg.
$54.50 each
150 Watt 12 Volt AC Power Adapter

150 Watt 12 Volt AC Power Adapter

Adapter Cable for 150w DC converter

Fanless AC-DC power adapter. No overload fan or vent slots in sealed housing. 150 Watts output is the perfect match for the 150 watt DC-DC converter.
  • 100-240 VAC input
  • 12 Volts Output
  • 12.5 Amps, 150 watts output
  • 160 watt peak
  • 4 pin mini-din jack connector
  • Adapter cable for 150w DC converter included







$49.50 each

PS Extension Cable

PS with Extension Cable installed

This cable is used to add extra drive power connectors to the DC-DC Power Converter above. One end has a special connector to fit the extra header on the power supply, the other end has a standard SATA power connector and 4-pin Molex power connector.















$3.00 each

PCI Express x4 Riser Card
Use this adapter to install a PCI Express x1 or x4 card into a PCIe x4 or x16 slot on motherboard.  It is a extended 2U height to fit the 2800HP case.



$28.50

Slim-line SATA Cable - 18"
This cable is used on slim-line SATA DVD and Blu-ray drives. One end has a special connector to fit the drive, the other end has a standard SATA connector and 5 volt 4-pin Molex connector. 18" long.

$12.00

Serial ATA Power Adapter Cable

Adapts 5.25" IDE power cable to dual SATA HDD power connectors. Use this cable to power two SATA drives.



$4.50 each
