Detailed Information - Performance - Case Order Form - Complete Systems

Case Order Form

Faceplate Color

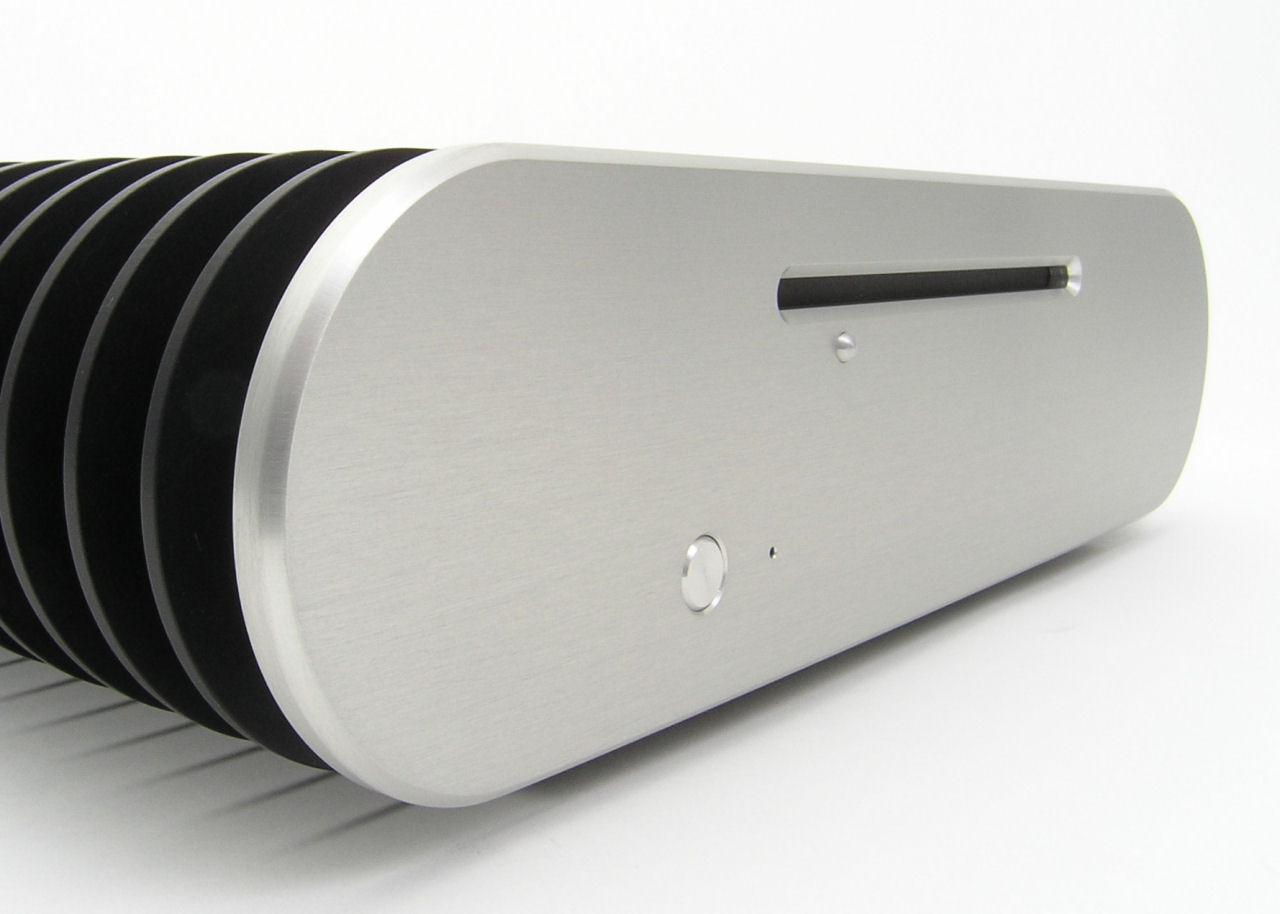

Silver faceplate

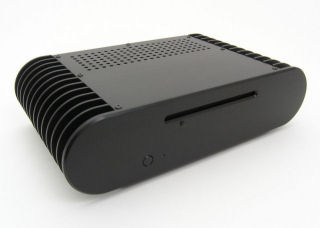

Black faceplate

We custom machine the faceplate based on your order. The faceplate then goes through five different polishing operations all done by hand to produce a very high quality finish. Then we must send out the parts to be anodized to the color of your choice.

The aluminum case and all aluminum brackets are treated by an anodizing process for corrosion protection and a long lasting uniform finish. The rear portion of chassis is black anodized. The faceplate and buttons can be either black or silver.
Silver faceplate
Black faceplate
Slim-line Slot-load

Slim-line, Slot-loading drive

Faceplate is machined to fit a standard 12.7mm slim-line slot-load optical drive. Includes machined eject button, drive mounting brackets, and hardware.

Compatible with all Slim-Line, Slot-Load drives

Note: Purchase a optical drive from us with your case (see 'Case Accessories' below order form) or enter the drive model you plan to install below so that we can match the eject button location on faceplate.

Specify the optical drive being installed:

Note: If you would like no optical drive slot, choose the STPC-300 case instead

Faceplate Logo Graphics





The Faceplate can include custom graphics and lettering during the anodizing process. Graphics can include company logo, button labels, system specs, and warning labels. Artwork to be provided by customer. Artwork should be in a vector format for best results. Preferred file format is PDF or Adobe Illustrator.

Approximate minimum pricing per job:

  • Single color artwork ($150)
  • Two color artwork ($200)

Contact A-Tech for price quote. Normally we can run several faceplates for the same minimum charge or a small nominal fee per extra plate.

No Logo

With single color logo graphics - add $150
With two color logo graphics - add $200

HeatSync® Cooling System

HeatSync® Cooling System

Intel DH57JG

The HeatSync® Cooling System eliminates the need for fan cooling of the processor. With our cooling system installed, heat from the processor is transferred into the heatsink case for dissipation to the outside air. On some motherboards, a separate HeatSync® system is installed on the chipset.

Note: The small Micro-Client 300 case can handle CPU's up to 65 watts. We suggest using a 45 watt processor for a cooler running system.

Includes:

  • HeatSync® base for processor
  • HeatSync® base for chipset
  • Pre-bent heat pipes for processor and chipset
  • Aluminum clamping plates for heatsink case
  • Required installation hardware
Select Your Motherboard: Below is a list of popular motherboards, but most mini-ITX motherboards are supported including High-end Server MB's with integrated CPU, Intel Mobile sockets, and AMD socket's. There are too many for us to list, if your MB is not listed, just select the "other motherboard" option and enter the model you wish to use.

No CPU HeatSync® Cooling System

Asus H170I-PLUS D3 - add $150 <--New Skylake MB

Gigabyte G1 Gaming GA-Z170N - add $120 <--New Skylake MB

Asus ROG Maximus VIII - add $120 <--New Skylake MB

MSI Z170I Gaming Pro - add $120 <--New Skylake MB

Gigabyte GA-H170N-WiFi - add $120 <--New Skylake MB

Asus H97i-Plus - add $120

Gigabyte GA-Z97N - add $120

Gigabyte GA-H97N - add $120

Asus Z87i-Deluxe - add $120

Asus H87-Plus - add $120

Gigabyte GA-Z87N-wifi - add $120

ASRock Z87E-ITX - add $120



Other motherboards not listed - add $120



Hard Drive Mounting
The case can be fitted with either one or two 2.5" HDD's or SSD's. Each mount can hold a drive up to 12mm thick.

One 2.5" HDD mount

Two 2.5" HDD mounts  $10

USB Port



USB Port



Face plate can be machined with cutout to fit a USB port adapter. Select between standard USB 2.0 or the new USB 3.0 port. Internal cable plugs into the USB header on your motherboard. USB 3.0 requires your MB to have a special 2x10 USB 3.0 header. Dual port design has two ports side by side.

No USB Port
With one USB 2.0 Port - add $15

With dual USB 3.0 Ports - add $30

Machined Billet Aluminum Case Feet

Billet Aluminum Case Feet



Enhance the appearance of your case with these beautifully machined billet aluminum case feet.







With Standard Rubber feet

With Black Aluminum Case Feet - add $20
With Silver Aluminum Case Feet - add $20

Shipping and Ordering Information

When will the case ship?

Standard lead time is 2-3 weeks depending on options and color choice. This case is custom made for you, not pulled off the shelf. We custom machine the faceplate based on your order, the faceplate then goes through five different polishing operations all done by hand. Then we must send out the parts to be anodized to the color of your choice.



Quantity Discounts?

Discounts are available on orders of two or more cases. Contact A-Tech Fabrication for more information.



HeatSync Micro-Client 300 Case ... $399 + options

Please select options above before adding to cart. Before checking out, be sure to add any additional accessories below so that they can be shipped with your case.

NOTE: The HeatSync® 300 Micro-Client is also available as a complete, fully assembled and ready to run system, see Complete Systems for details. If you feel assembling this case looks more difficult than you care to handle, save time and let the experts at A-Tech Fabrication assemble it for you!

Case Accessories
Intel® Core™ i7 Skylake Processor
The 6th Generation Intel® Core™ i7 processors deliver a new class of computing with a host of new features to power the next generation of desktop PCs. Expect lighting fast speeds and peak performance through even the toughest of tasks and games.

Note: These are OEM processors packaged in bulk trays. They are not available as a retail boxed set. Stock heatsink fan cooler is not included.

Core i7-6770T Skylake
  • 2.8 GHz clock
  • 3.8 GHz Turbo Mode
  • Quad Core, 8 Threads
  • Intel HD Graphics 530
  • 35 watts

$339 each

Arctic Silver 5 Thermal Compound

Made With 99.9% Pure Silver, Arctic Silver 5 uses three unique shapes and sizes of pure silver particles to maximize particle-to-particle contact area and thermal transfer. Arctic Silver 5 also contains sub-micron zinc oxide, aluminum oxide and boron nitride particles. These thermally-enhanced ceramic particles improve the performance and long-term stability.
  • 3.5 gram tube
  • Made in the USA
$9.75 each
Blu-ray reader/writer:

Blu-ray reader/writer



Slim-line SATA interface

The Blu-ray reader/writer is a slim-line, slot-load optical drive for playback and recording of CD, DVD, and Blu-ray discs. The SATA interface requires a special slim-line power/data cable sold below.

Specifications - Write/Read speeds:

  • BD-R 6x/6x
  • BD-R-XL 4x/4x
  • BD-RE 2x/2x
  • BD-ROM --/6x
  • DVD-RAM 5x/5x
  • DVD-R 8x/8x
  • DVD-RW 6x/6x
  • DVD+R 8x/8x
  • DVD+RW 8x/8x
  • DVD-ROM --/8x
  • CD-R 24x/24x
  • CD-RW 16x/24x
  • CD-ROM --/24x
$142.00 each
DVD reader/writer:

DVD reader/writer

Slim-line SATA interface

The DVD reader/writer is a slim-line, slot-load optical drive for playback and recording of CD and DVD discs. The SATA interface requires a special slim-line power/data cable sold below.

Specifications - Write/Read speeds:

  • DVD-RAM 5x/5x
  • DVD-R 8x/8x
  • DVD-RW 6x/8x
  • DVD+R 8x/8x
  • DVD+RW 8x/8x
  • DVD-ROM --/8x
  • CD-R 24x/24x
  • CD-RW 24x/24x
  • CD-ROM --/24x
$109.00 each
150 Watt DC-DC Power Converter

150 Watt DC-DC Power Converter

The picoPSU-150-XT is a compact high efficiency DC-DC converter that plugs directly into a 24-pin ATX MB connector. It features a built-in P4 power cable for the motherboard and a 4-pin Molex and SATA power connector for drives and accessories.
  • Over 96% efficiency
  • 24 pin ATX connector
  • 12 volts DC input
  • 150 watts output
  • 8A @ 12V
  • 6A @ 3.3V
  • 6A @ 5V
  • MTBF = 100,000 hours at 55C deg.
$49.50 each
150 Watt 12 Volt AC Power Adapter

150 Watt 12 Volt AC Power Adapter

Adapter Cable for 150w DC converter

Fanless AC-DC power adapter. No overload fan or vent slots in sealed housing. 150 Watts output is the perfect match for the 150 watt DC-DC converter.
  • 100-240 VAC input
  • 12 Volts Output
  • 12.5 Amps, 150 watts output
  • 160 watt peak
  • 4 pin mini-din jack connector
  • Adapter cable for 150w DC converter included







$49.50 each

PS-150-XT Extension Cable

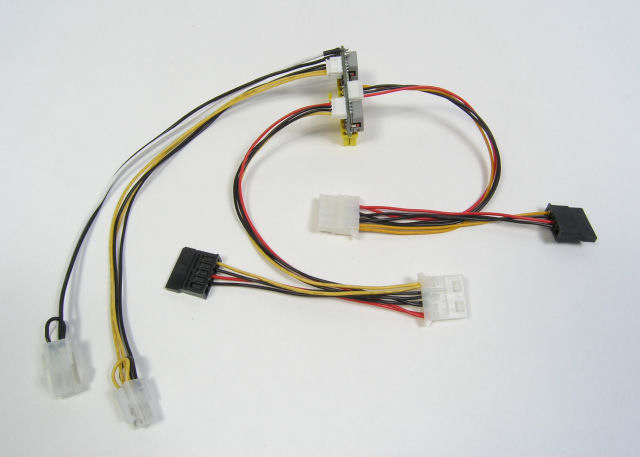

150 Watt PS with Extension cable installed

This cable is used to add extra drive power connectors to the 150 Watt DC-DC Power Converter above. One end has a special connector to fit the extra header on the power supply, the other end has a standard SATA power connector and 4-pin Molex power connector. Use this cable when more than one HDD is installed.















$3.00

Slim-line SATA Power/Data Cable
This cable is used on slim-line SATA DVD and Blu-ray drives. One end has a special connector to fit the drive, the other end has a standard SATA connector and 5 volt 4-pin Molex connector.

Required on these drives:

  • Panasonic Blu-ray UJ-235-A

  • Panasonic Blu-ray UJ-135-A

  • Sony NEC Optiarc BC-5600S

$10.00

Serial ATA Power Adapter Cable

Adapts 5.25" IDE power cable to dual SATA HDD power connectors.



$4.50 each



IDE Power Cable Splitter

Single IDE power cable to dual IDE power cable splitter.



$3.00 each
