Detailed Information - Case Order Form - Complete Systems

Complete System Order Form
A-Tech Fabrication is a leader in designing state-of-the-art computer systems for the home theater. Now you can purchase a complete system assembled and tested by the experienced team at A-Tech Fabrication and know you are getting the best. Every component in the system is individually selected and tested for compatibility and performance. Each system is hand assembled with care to ensure the highest in quality and reliability. The completed system is stress-tested for 24 hours to ensure all components are functioning properly.
Standard System Features:
  • Fully Assembled HeatSync 7000 Case
  • HeatSync Cooling System for CPU
  • Choice of Motherboard and CPU
  • Choice of Video Card
  • Choice of Hard Drive
  • Power Supply
  • Optical Drive
  • All required power and data cables
  • Microsoft Windows 7 Home Premium 32-bit operating system



Optional Features:
  • Blu-ray Optical Drive
  • HeatSync Cooling System for Video Card
  • 4U 19" Rack Mount Faceplate
  • Touch Screen Display
  • IR receiver and remote
  • PowerMate Multimedia Controller
  • USB 2.0 front panel port
  • Billet Aluminum Case Feet
  • Microsoft Windows 7 Ultimate 64-bit operating system

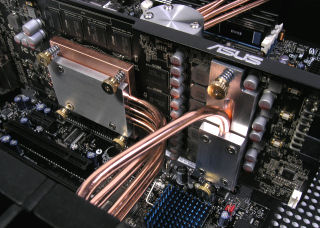

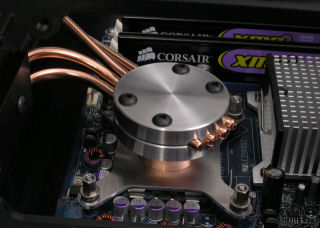

CPU HeatSync® System

CPU HeatSync® System

Silent, solid-state cooling system for processor. No moving parts to maintain or fail which ensures reliable operation for years. CPU base is precision machined from solid copper for optimum heat transfer from processor chip. Heat-treated and anodized aluminum clamping plates transfer heat to the heatpipes. Heatpipes are custom formed to match your processor socket and motherboard. Wide thermal clamping plates conduct heat into the case.
  • Copper CPU base
  • Precision spring retention system
  • Custom formed heatpipes
  • Thermal clamping plates w/ hardware

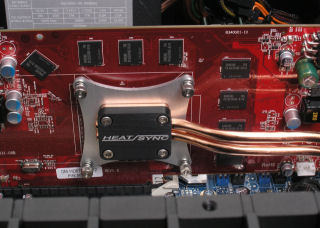

Video Card HeatSync® System

Video Card HeatSync® System

Silent, solid-state cooling system for video card processor. No moving parts to maintain or fail ensures reliable system operation for years. GPU base is precision machined from solid copper for optimum heat transfer from the processor chip. Heatpipes are custom formed to match your motherboard and video card combination.
  • Copper GPU base
  • Aluminum clamping plate
  • Precision spring retention system
  • Custom formed heatpipes

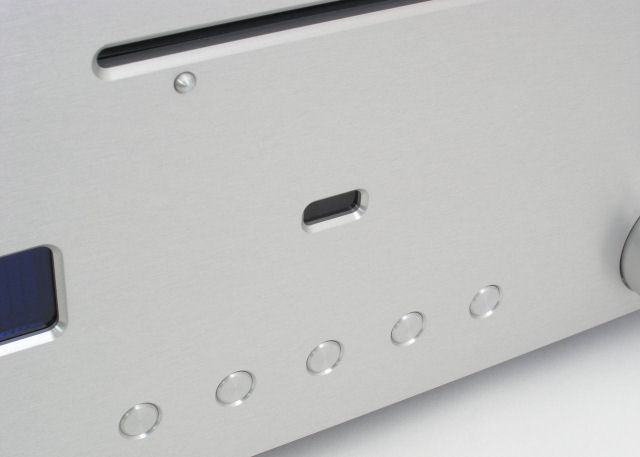

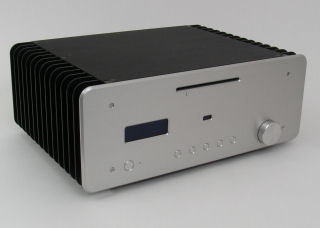

Faceplate Color

Black case with Black faceplate

Black case with Silver faceplate



The aluminum case and all aluminum brackets are treated by an anodizing process for corrosion protection and a long lasting uniform finish. The rear portion of chassis is black anodized. The faceplate and buttons can be either black or silver.

















Black case with Black faceplate
Black case with Silver faceplate



Faceplate Logo Graphics





The Faceplate can include custom graphics and lettering during the anodizing process. Graphics can include company logo, button labels, system specs, and warning labels. Artwork to be provided by customer. Artwork should be in a vector format for best results. Preferred file format is PDF or Adobe Illustrator.

Approximate minimum pricing per job:

  • Single color artwork ($150)

  • Two color artwork ($200)

Contact A-Tech for price quote. Normally we can run several faceplates for the same minimum charge or a small nominal fee per extra plate.

No Logo

With single color logo graphics - add $150
With two color logo graphics - add $200

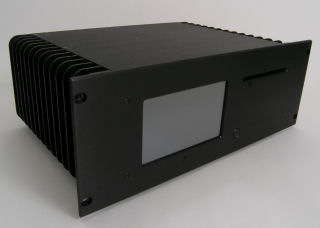

Rack Mounting

Rack Mount Faceplate

Case can be provided with a one-piece 19" faceplate for rack mounting. This plate is 7.0" tall (4U) and 19" wide. The 7.0" faceplate extends above and below the 6.50" chassis by 0.25". Slotted and recessed holes are machined to accommodate rack mounting screws.



Standard Faceplate

With 4U 19" Rack Mount Faceplate - add $95



Optical Drive

Slim-line, Slot-loading drive





Faceplate is machined for a slim-line slot-loading drive and includes a custom machined eject button. All models have a SATA interface.

DVD reader/DVD writer:

  • DVD-RAM, DVD-R, DVD-R DL, DVD-RW, DVD+R, DVD-R DL, DVD+RW, DVD-ROM
  • CD-R, CD-RW, CD-ROM
Blu-ray reader/DVD writer:
  • BD-ROM, BD-RE, BD-R
  • DVD-RAM, DVD-R, DVD-R DL, DVD-RW, DVD+R, DVD-R DL, DVD+RW, DVD-ROM
  • CD-R, CD-RW, CD-ROM

Select Optical Drive:

With DVD reader/writer

With Blu-ray reader, DVD writer - add $90

No optical drive and no drive slot in faceplate - deduct $75

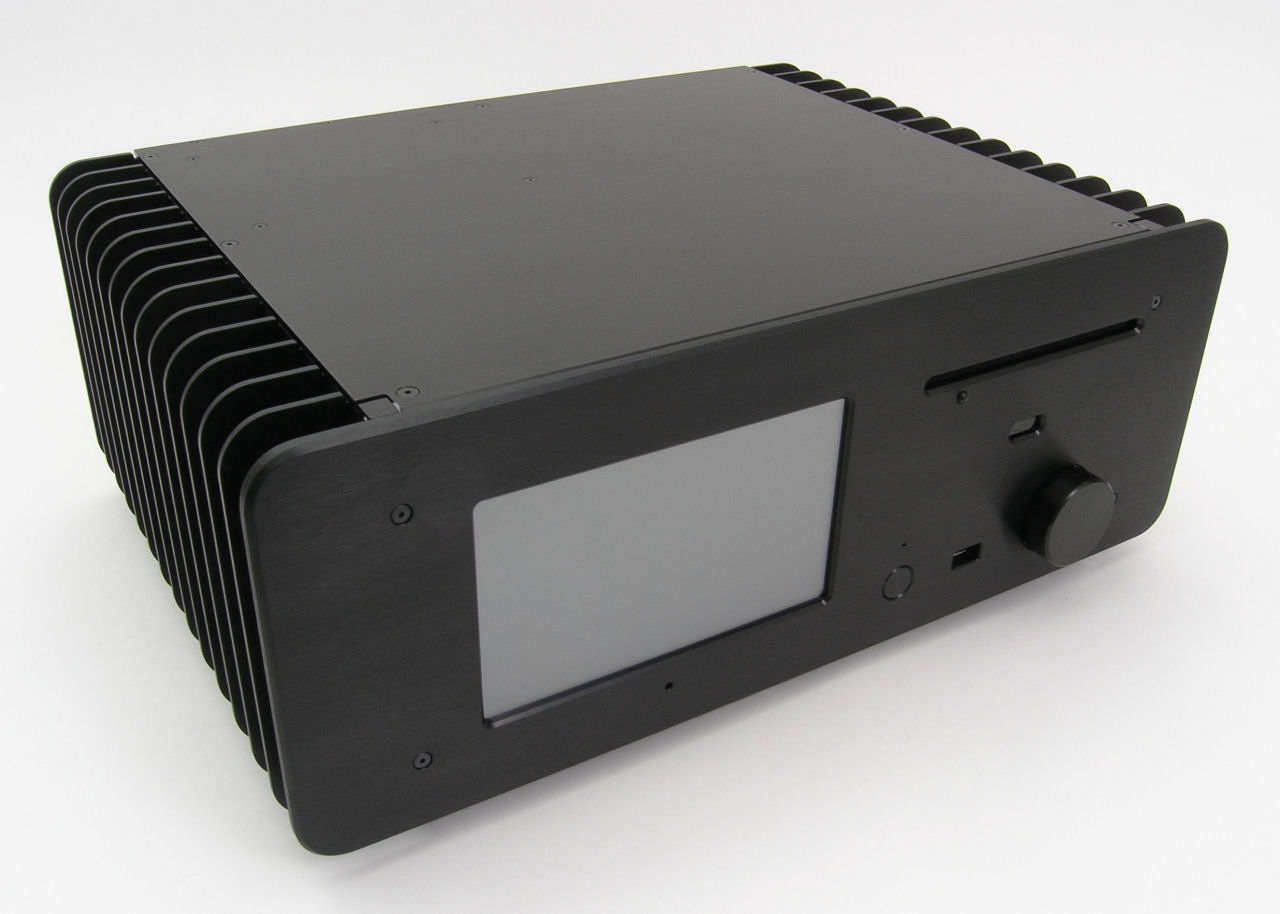

Touch Screen Mounting

Touch Screen Mounting

Faceplate is machined with a cutout to fit a Xenarc 700TS LCD Touch Screen. The display can be used for operator input, previewing movies, or as a windows desktop. An infrared remote is included to turn the display on/off and control brightness, contrast, and display position settings. Connects to one of the VGA ports on video card for maximum picture quality.
  • Touch Screen style faceplate
  • Xenarc 700TSV Display
  • Infrared remote control
  • Internal USB TS input cable

No Display
With Touch Screen - add $425



PowerMate Control Knob Mounting

PowerMate Control Knob Mounting

Face plate is machined with a special cutout to fit a  Griffin Technology PowerMate controller and input device. This knob can be programmed for a number of tasks such as volume control and scrolling through menus. PowerMate Multimedia Controller and software is included.

Note: PowerMate software utility runs in Win7 32-bit, but does not run in 64-bit. You can use Girder software to program with 64-bit OS.

No PowerMate
With PowerMate -Silver - add $100

With PowerMate -Black - add $120

IR Receiver

IR Receiver



Faceplate is machined with a cutout to fit a infrared receiver. Includes IR receiver and remote control. IR receiver works with Windows 7 Home Premium and Ultimate versions, no drivers are required.

A CIR sensor is used on all Intel motherboards. MB's that do not have a CIR header will have a USB sensor. The CIR sensor has added functionality for powering up/down system  depending on the remote control used and how the power button functions. The included remote control utilizes sleep mode when powering down.

No IR receiver
With IR receiver and remote - add $50



USB Port

Single USB 2.0 Port

Face plate is machined with cutout to fit a USB port adapter for connecting devices such as smart phones and memory sticks. Select between standard USB 2.0 or the new high-speed USB 3.0 port. Cable plugs into the USB header on  motherboard.

No USB Port
With Single USB 2.0 Port - add $20

With Dual USB 3.0 Ports - add $45

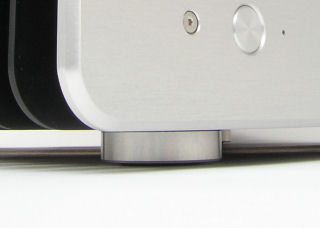

Machined Billet Aluminum Case Feet
Enhance the appearance of your case with these precision machined and polished, billet aluminum, anodized case feet.



With Standard Rubber feet

With Black Aluminum Case Feet - add $20
With Silver Aluminum Case Feet - add $20



System Package
Choose between two system packages. Each system package includes the motherboard, memory, and power supply. The set of system components have been carefully selected and tested to provide optimum performance and reliability.
The Media Series System is ideal for media recording and 1080p playback yet has plenty of video power for gaming. This system uses less power and will run the coolest. The motherboard includes integrated video, or you can choose to add a video card. The Extreme Series System is geared towards gaming with higher frame rates or where high processing power is required. This system uses more power and can run hotter than the Media Series System. The motherboard includes integrated video, or you can choose to add a video card.

Motherboard: Intel® DH77KC

Processor: Intel Ivy Bridge Core i5 and i7

Memory: Four 240-pin DDR3 1600/1333 MHz

Chipset: Intel® H77 Express Chipset

Graphics: Intel Integrated Graphics Technology
Audio: Intel® High Definition Audio
Video Output: HDMI, DVI-I, DisplayPort

Audio Output: Five analog, One optical S/PDIF

LAN: Intel 82579V Gigabit (10/100/1000 Mbits/sec)
RAID: RAID 0, 1, 5, 10

SATA 6.0: Two Serial ATA 6.0 Gb/s ports

SATA 3.0: Five Serial ATA 3.0 Gb/s ports
eSATA: One eSATA 3.0 Gb/s rear panel port

mSATA: mini-PCI Express card connector

IEEE 1394a: none

USB 3.0: Four USB 3.0 (2 back + 2 internal)

USB 2.0: Eight USB 2.0 (4 back + 4 internal)

PCIe: One PCI Express 3.0 x16 bus connector
PCIe: One PCI Express 2.0 x4 bus connector

PCIe: One PCI Express 2.0 x1 bus connector

PCI: Three PCI  bus connectors

mini-PCIe: One mini-PCI Express card connector



Motherboard: Intel® DZ77GA-70K

Processor: Intel Ivy Bridge Core i5 and i7

Memory: Four 240-pin DDR3 1600/1333 MHz

Chipset: Intel® Z77 Express Chipset

Graphics: Intel Integrated Graphics Technology
Audio: Intel® High Definition Audio
Video Output: HDMI

Audio Output: Five analog, One optical S/PDIF

LAN: Intel 82579V Gigabit (10/100/1000 Mbits/sec)
RAID: RAID 0, 1, 5, 10

SATA 6.0: Four Serial ATA 6.0 Gb/s ports

SATA 3.0: Four Serial ATA 3.0 Gb/s ports
eSATA: One eSATA 6.0 Gb/s rear panel port

mSATA: none

IEEE 1394a: Firewire ports (1-rear panel, 1-internal)

USB 3.0: Eight USB 3.0 (4 back + 4 internal)

USB 2.0: Ten USB 2.0 (4 back + 6 internal)

PCIe: Two PCI Express 3.0 x16 bus connector
PCIe: One PCI Express 2.0 x4 bus connector

PCIe: Two PCI Express 2.0 x1 bus connector

PCI: Two PCI  bus connectors

mini-PCIe: none




The Intel® Desktop Board DH77KC supports the 2nd generation and 3rd generation Intel® Core™ i7, Intel® Core™ i5 processors, and other Intel® processors in the LGA1155 package.

The board is featured with DVI-I, HDMI, and DisplayPort connectors and supports dual independent display for processors with Intel® HD Graphics.

The Intel® Desktop Board DH77KC supports Intel® HD Graphics with the LucidLogix Virtu Universal software, which combines best-in-class media processing features of the Intel® Core™ processors with the 3D gaming performance of graphics add-in cards.

Best in a series of Intel® Desktop Boards optimized for the Intel® -K family of processors, the Intel® Desktop Board DZ77GA-70K sets a new standard when it comes to performance that gamers, overclockers, digital media enthusiasts, and ultimate multi-taskers need most.

Intel® Desktop Board DZ77GA-70K provides breakaway performance and flexibility. The new Intel® Visual BIOS offers graphical interface and animated controls, which allow you to configure settings faster and take full advantage of your Intel® -K processors.


Media Series System:

  • Intel DH77KC ATX MB
  • Intel Core i7-3770S 3.1GHz Quad-Core
  • Intel Graphics HD 4000 graphics
  • 650-750w Power Supply
  • HeatSync Cooling System for CPU
Extreme Series System:
  • Intel DZ77GA-70K ATX MB
  • Intel Core i7-3770K 3.5GHz Quad-Core
  • Intel Graphics HD 4000 graphics
  • 750-850w Power Supply
  • HeatSync Cooling System for CPU
Media Series System Package
Extreme Series System Package - add $399

Select Memory:



Corsair XMS3, 4GB  Matched Pair, DDR3, 1600 MHz memory

Corsair XMS3, 8GB  Matched Pair, DDR3, 1600 MHz memory - add $45



Note: Must select 64-bit operating system with 8GB memory



Chipset HeatSync Cooling System

Chipset Cooling System



HeatSync® Cooling System specifically designed for the chipset on the motherboard. Transfers heat from the motherboard chipset into the heatsink case. Helps reduces motherboard, voltage regulator, and internal case temps.



No Chipset HeatSync

Chipset HeatSync - add $75

Video Card

ATI Radeon HD 6670

6670 HeatSync Cooling System



The ATI Radeon HD 6670 is ideal for media recording and playback yet has plenty of video power for gaming. The video card is silently cooled by our exclusive HeatSync Cooling System for long lasting reliability.

800 MHz engine clock

512MB-1GB GDDR5 memory

1000 MHz memory clock

64 GB/s memory bandwidth

768 GFLOPS compute power

Ports: 1x HDMI, 1x DisplayPort, 1x DVI

ATI Radeon HD 6850

Extreme 6850 HeatSync Cooling System



The ATI Radeon HD 6850 is geared more towards gaming with the highest frame rates possible. The video card is cooled by the stock cooling fan or silently cooled by our exclusive HeatSync Cooling System for long lasting reliability.

775 MHz engine clock

1GB GDDR5 Memory

1000 MHz memory clock

128  GB/s memory bandwidth

1.5 TFLOPS compute power

Ports: 1x HDMI, 1x DisplayPort, 1x DVI

No video card installed (motherboard has built-in HD video)

ATI Radeon HD 6670 with silent HeatSync Cooling System - add $179

ATI Radeon HD 6850 with stock fan cooling - add $299

ATI Radeon HD 6850 with silent HeatSync Cooling System - add $550



Hard Drive





Seagate Barracuda 3.5" HDD









Intel 510 Series 2.5" SSD

The standard hard drive installed is the new low-power Seagate Barracuda Green 5900 RPM drive. The new Green drives run super quiet and draw less power allowing them to run cooler. The optional 7200 RPM XT drives offer slightly more performance at the cost of more noise and heat.

For total silence and extreme speed, a solid state drive (SSD) is the way to go. SSD prices have come way down lately making them a viable choice for your system. System boot-up times are typically 15 seconds and programs launch in the blink of an eye. The most noticeable performance increase for the cost.

Select Dual drives for additional storage. With dual drives, we install the operating system and programs on the SSD and set-up the second HDD for data and media storage.

Seagate Barracuda Green 5900 RPM

  • SATA 6.0Gb/s
  • Cache 64MB
  • Latency 4.16ms

Seagate Barracuda XT 7200 RPM

  • SATA 6.0Gb/s
  • Cache 64MB
  • Latency 4.16ms

Intel 520 Series 2.5" SSD

  • SATA III
  • 550MB/s Read
  • 520MB/s Write

Intel 320 Series 2.5" SSD

  • SATA II
  • 270MB/s Read
  • 165MB/s Write

Primary Drive - Operating System and Programs

----- Solid-State-Drives -----

120GB 2.5" Intel 320 Series SSD - add $125

120GB 2.5" Intel 520 Series SSD - add $199  <-Recommended

160GB 2.5" Intel 320 Series SSD - add $229

180GB 2.5" Intel 520 Series SSD - add $349

Note: Larger size SSD's available on request

----- 3.5" Hard Drives -----

1TB 3.5" Seagate Barracuda Green 5900 RPM

2TB 3.5" Seagate Barracuda Green 5900 RPM - add $75

3TB 3.5" Seagate Barracuda XT 7200 RPM - add $175



Secondary Drive - Data and Media Storage (Only available with 2.5" primary drive option above)

No Secondary Drive

----- Solid-State-Drives -----

160GB 2.5" Intel 320 Series SSD - add $339

180GB 2.5" Intel 520 Series SSD - add $459

----- 3.5" Hard Drives -----

2TB 3.5" Seagate Barracuda Green 5900 RPM - add $185  <-Recommended

3TB 3.5" Seagate Barracuda XT 7200 RPM - add $285



Tuner Card

Ceton InfiniTV 4 Tuner Card

(STPC-300 case shown)



The Ceton InfiniTV 4 digital quad-tuner card allows you to record four digital cable or four over-the-air high-definition programs at the same time. The tuner functions are controlled within Windows Media Center which makes it very easy to program, record, and playback your programs. Connection to your antenna or cable is made from a single coaxial connector.

Ceton InfiniTV 4 Details

No Tuner Card installed
With Ceton InfiniTV 4 Tuner Card installed - add $299

Operating System

Our complete systems come pre-installed with your choice of operating systems from Microsoft.

Windows 8 with its new tile interface and built-in apps like People, Mail, Photos, and Messaging power you through all your essential tasks and work together for a single, streamlined experience.

Windows 7 with its classic interface and built-in Media Center capabilities make it easy to enjoy watching movies, playing music, and more.

Please note:

  • Only select the 64-bit version if you know all your software and hardware will operate on 64-bit.
  • 64-bit OS must be used with 8GB memory option.

Microsoft Windows 8 Standard 32-bit operating system

Microsoft Windows 8 Standard 64-bit operating system

Microsoft Windows 8 Professional 32-bit operating system - add $50

Microsoft Windows 8 Professional 64-bit operating system - add $50

Microsoft Windows 7 Home Premium 32-bit operating system

Microsoft Windows 7 Home Premium 64-bit operating system

Microsoft Windows 7 Ultimate 32-bit operating system - add $90

Microsoft Windows 7 Ultimate 64-bit operating system - add $90

No operating system installed - deduct $100



Shipping and Ordering Information

When will the case ship?

Standard lead time is 2-3 weeks.



HeatSync 7000 System .... $2499 + options

Note: To purchase the bare case separately, see Case Order Form
