Detailed Information - Performance - Case Order Form - Complete Systems

Case Order Form

Faceplate Color

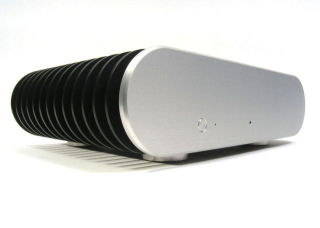

Silver faceplate

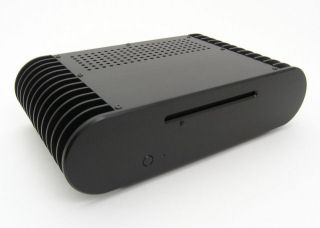

Black faceplate

We custom machine the faceplate based on your order. The faceplate then goes through five different polishing operations all done by hand to produce a very high quality finish. Then we must send out the parts to be anodized to the color of your choice.

The aluminum case and all aluminum brackets are treated by an anodizing process for corrosion protection and a long lasting uniform finish. The rear portion of chassis is black anodized. The faceplate and buttons can be either black or silver.
Silver faceplate
Black faceplate
Faceplate Logo Graphics





The Faceplate can include custom graphics and lettering during the anodizing process. Graphics can include company logo, button labels, system specs, and warning labels. Artwork to be provided by customer. Artwork should be in a vector format for best results. Preferred file format is PDF or Adobe Illustrator.

Approximate minimum pricing per job:

  • Single color artwork ($150)
  • Two color artwork ($200)

Contact A-Tech for price quote. Normally we can run several faceplates for the same minimum charge or a small nominal fee per extra plate.

No Logo

With single color logo graphics - add $150
With two color logo graphics - add $200

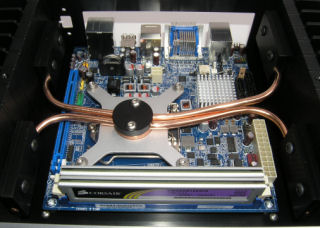

HeatSync® Cooling System

HeatSync® Cooling System

Intel DH57JG

The HeatSync® Cooling System eliminates the need for fan cooling of the processor. With our cooling system installed, heat from the processor is transferred into the heatsink case for dissipation to the outside air. On some motherboards, a separate HeatSync® system is installed on the chipset.

Note: The small STPC-300 case can handle CPU's up to 65 watts. We suggest using a 45 watt processor for a cooler running system.

Includes:

  • HeatSync® base for processor
  • HeatSync® base for chipset
  • Pre-bent heat pipes for processor and chipset
  • Aluminum clamping plates for heatsink case
  • Required installation hardware
Select Your Motherboard: Below is a list of popular motherboards, but most mini-ITX motherboards are supported including High-end Server MB's with integrated CPU, Intel Mobile sockets, and AMD socket's. There are too many for us to list, if your MB is not listed, just select the "other motherboard" option and enter the model you wish to use.

No CPU HeatSync® Cooling System

Asus H170I-PLUS D3 - add $120 <--New Skylake MB

Gigabyte G1 Gaming GA-Z170N - add $120 <--New Skylake MB

Asus ROG Maximus VIII - add $120 <--New Skylake MB

MSI Z170I Gaming Pro - add $120 <--New Skylake MB

Gigabyte GA-H170N-WiFi - add $120 <--New Skylake MB

Asus H97i-Plus - add $120

Gigabyte GA-Z97N - add $120

Gigabyte GA-H97N - add $120

Asus Z87i-Deluxe - add $120

Asus H87-Plus - add $120

Gigabyte GA-Z87N-wifi - add $120

ASRock Z87E-ITX - add $120



Other motherboards not listed - add $120



Hard Drive Mounting
The case can be fitted with either one or two 2.5" HDD's or SSD's. Mounting bracket can hold drives up to 12mm thick.

One 2.5" HDD mount

Two 2.5" HDD mounting  $10

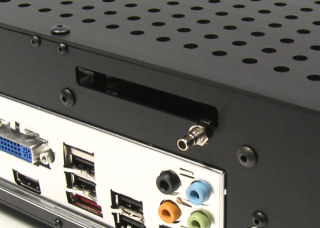

PCIe Slot Mounting

PCIe Slot Mounting

(Ceton InfiniTV 4 rear panel shown)



Two rear panels designs are available. One with only the MB cut-out, the other rear panel is made for a standard 1/2 height PCIe card slot bracket for use with audio and tuner cards etc.



No PCIe card mounting cut-out
1/2 height PCIe bracket mounting - add $10

USB Port



USB Port



Face plate can be machined with cutout to fit a USB port adapter. Select between standard USB 2.0 or the new USB 3.0 port. Internal cable plugs into the USB header on your motherboard. USB 3.0 requires your MB to have a special 2x10 USB 3.0 header. Dual port design has two ports side by side.

No USB Port
With one USB 2.0 Port - add $15

With dual USB 3.0 Ports - add $30

Machined Billet Aluminum Case Feet

Billet Aluminum Case Feet



Enhance the appearance of your case with these beautifully machined billet aluminum case feet. The feet are precision machined to a fine finish and anodized for long lasting beauty. Each foot has a special non-marring insert for surface protection.

Please Note: The Billet Aluminum Case Feet are only an option with the Classic Horizontal Chassis style. The Micro-Tower Chassis uses special low profile non-marring feet.

With Standard Rubber feet

With Black Aluminum Case Feet - add $20
With Silver Aluminum Case Feet - add $20

Shipping and Ordering Information

When will the case ship?

Standard lead time is 2-3 weeks depending on options and color choice. This case is custom made for you, not pulled off the shelf. We custom machine the faceplate based on your order, the faceplate then goes through five different polishing operations all done by hand. Then we must send out the parts to be anodized to the color of your choice.



Quantity Discounts?

Discounts are available on orders of two or more cases. Contact A-Tech Fabrication for more information.



HeatSync® STPC-300 Set-Top PC Case ... $379 + options

Please select options above before adding to cart. Before checking out, be sure to add any additional accessories below so that they can be shipped with your case.

NOTE: The HeatSync® STPC-300 Set-Top PC is also available as a complete, fully assembled and ready to run system, see Complete Systems for details. If you feel assembling this case looks more difficult than you care to handle, save time and let the experts at A-Tech Fabrication assemble it for you!

Case Accessories
Intel® Core™ i7 Skylake Processor
The 6th Generation Intel® Core™ i7 processors deliver a new class of computing with a host of new features to power the next generation of desktop PCs. Expect lighting fast speeds and peak performance through even the toughest of tasks and games.

Note: These are OEM processors packaged in bulk trays. They are not available as a retail boxed set. Stock heatsink fan cooler is not included.

Core i7-6770T Skylake
  • 2.8 GHz clock
  • 3.8 GHz Turbo Mode
  • Quad Core, 8 Threads
  • Intel HD Graphics 530
  • 35 watts

$339 each

Arctic Silver 5 Thermal Compound

Made With 99.9% Pure Silver, Arctic Silver 5 uses three unique shapes and sizes of pure silver particles to maximize particle-to-particle contact area and thermal transfer. Arctic Silver 5 also contains sub-micron zinc oxide, aluminum oxide and boron nitride particles. These thermally-enhanced ceramic particles improve the performance and long-term stability.
  • 3.5 gram tube
  • Made in the USA
$9.75 each
150 Watt DC-DC Power Converter

150 Watt DC-DC Power Converter

The picoPSU-150-XT is a compact high efficiency DC-DC converter that plugs directly into a 24-pin ATX MB connector. It features a built-in P4 power cable for the motherboard and a 4-pin Molex and SATA power connector for drives and accessories.
  • Over 96% efficiency
  • 24 pin ATX connector
  • 12 volts DC input
  • 150 watts output
  • 8A @ 12V
  • 6A @ 3.3V
  • 6A @ 5V
  • MTBF = 100,000 hours at 55C deg.
$49.50 each
150 Watt 12 Volt AC Power Adapter

150 Watt 12 Volt AC Power Adapter

Adapter Cable for 150w DC converter

Fanless AC-DC power adapter. No overload fan or vent slots in sealed housing. 150 Watts output is the perfect match for the 150 watt DC-DC converter.
  • 100-240 VAC input
  • 12 Volts Output
  • 12.5 Amps, 150 watts output
  • 160 watt peak
  • 4 pin mini-din jack connector
  • Adapter cable for 150w DC converter included







$49.50 each

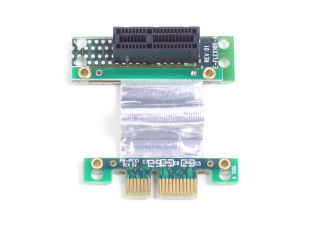

PCIe Flex Riser

This is a custom PCIe x1 flexible riser card that locates the card over the motherboard. Riser is about 1-3/4" long and can flex to accommodate various card positions. Made to fit PCIe x1 cards. It will work with any PCIe slot size on the motherboard (x1, x4, x8, x16).

$45.00 each
