Mass Storage 2500

Detailed Information - Case Order Form - Complete Systems


Mass-Storage 2500 Case Order Form

Faceplate Color

Black case with Black faceplate

Black case with Silver faceplate

The aluminum case and all aluminum brackets are treated by an anodizing process for corrosion protection and a long lasting uniform finish. The rear portion of chassis is black anodized. The faceplate and buttons can be either black or silver.
Black case with Black faceplate
Black case with Silver faceplate
Rack Mount

Rack Mount Faceplate

(1U case shown for example)



The one-piece rack mount faceplate incorporates rack mounting into the faceplate for a seamless look. The overall width of the faceplate is 19". Oval mounting holes are centered at 18.312". Faceplate height is 3.50" (2U).
No rack mounting
With one-piece rack mount faceplate - add $75
Hard Drive Mounting

3.5" Hard Drive Mounting

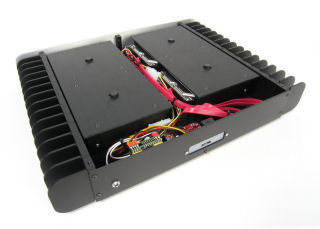

The Mass Storage 2500 includes our proprietary Drive Isolation System. The Drive Isolation System suspends the drives in a aluminum module which absorbs the heat from the drives. The drive module floats on specially designed isolation pads eliminating noise from vibration.

Note: To use (8) 2.5" drives, you must select the 8-port Multilane SATA adapter below. The eSATA adapter is limited to (5) drives max.

Drive Isolation System (4) 3.5" HDD - add $75

Drive Isolation System (8) 2.5" HDD - add $85

Machined Billet Aluminum Case Feet

Billet Aluminum Case Feet



Enhance the appearance of your case with these beautifully machined billet aluminum case feet.







With Standard Rubber feet

With Black Aluminum Case Feet - add $25
With Silver Aluminum Case Feet - add $25

Shipping and Ordering Information

When will the case ship?

Standard lead time is 2-3 weeks depending on options and color choice.



Quantity Discounts?

Discounts are available on orders of two or more cases. Contact A-Tech Fabrication for more information.



Mass-Storage 2500 Case ... $569 + options

Please select options above before adding to cart. Before checking out, be sure to add any additional accessories below so that they can be shipped with your case.

NOTE: The Mass-Storage 2500 is also available as a complete, fully assembled and ready to run storage system including choice of hard drives, see Complete System for details.

Case Accessories

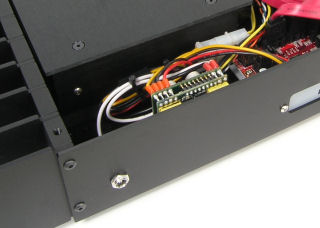

120 Watt DC-DC Power Supply

120 Watt DC-DC Power Supply



The picoPSU-120 is a small 12V DC-DC power converter. Plugs directly into the 20-pin ATX  connector included with the case. To operate, an external AC power adapter is also required, see below.
  • 12 volts DC input
  • 120 watts DC output
  • 95% efficiency
  • 7A @ 12V
  • 6A @ 3.3V
  • 6A @ 5V

$49.95 each

12 Volt AC Power Adapter

External AC power adapter for use with the picoPSU-120 power converter.
  • 100 to 240 VAC input
  • 12 Volts Output
  • 8.5 Amps
  • 5mm x 2.5mm Connector
  • 3-prong AC power cord

$44.50 each

NEW! USB 3.0 and eSATA RAID adapter

USB 3.0 and eSATA RAID adapter

This new RAID adapter has both high speed USB 3.0 and eSATA interface for versatility. Features an integrated hardware RAID controller to maximize performance. The RAID configuration is programmed using onboard jumpers for simple deployment. Software is included for RAID management and advanced RAID configuration.
  • USB 3.0 host port
  • eSATA host port
  • (5) SATA ports
  • RAID0 (Striping)
  • RAID5 (Parity)
  • RAID10 (Mirrored Striped)
  • JBOD (Concatenation)

$115 each

eSATA RAID adapter

eSATA RAID adapter

The eSATA RAID adapter features an integrated hardware RAID controller to maximize performance. The RAID configuration is programmed using onboard jumpers for simple deployment. Software is included for RAID management and advanced RAID configuration.
  • eSATA host port
  • (5) SATA ports
  • RAID0 (Striping)
  • RAID5 (Parity)
  • RAID10 (Mirrored Striped)
  • JBOD (Concatenation)

$95 each

eSATA cable

External eSATA cable used to connect the eSATA adapter above to the eSATA port on the host PC.

One meter eSATA cable - $14

Two meter eSATA cable - $21

Single SAS to SATA Centronics adapter

SAS SFF-8088 adapter with four SATA HDD connectors on a Centronics type slot bracket. Use this adapter in our storage cases for connecting to four SATA HDD's. One Mini-SAS cable is required for connecting to a 4-port RAID card with an external back panel SFF-8088 connector.
  • Eight 7-pin Serial ATA2 Connectors
  • One SFF-8088 External SAS Connectors

$52.50 each

Dual SAS to SATA Centronics adapter

SAS adapter with eight SATA HDD connectors on a Centronics type slot bracket. Use this adapter in our storage cases for connecting to eight SATA HDD's. Two Mini-SAS cables are required for connecting to a 8-port RAID card with two external back panel SFF-8088 connectors
  • Eight 7-pin Serial ATA2 Connectors
  • Two SFF-8088 External SAS Connectors

$106.95 each

Mini-SAS SFF-8088 Cable

Mini-SAS cable is used to connect our storage cases to your host PC. Each end has a SFF-8088 connector. Use for connecting RAID card to the SFF-8088 SATA adapter above. Choose from 1-meter or 2-meter, we also have 4-meter and 8-meter cables available special order.
One (1) meter long $56

Two (2) meter long $82
Multi-Lane to SATA Centronics adapter

Infiniband Multilane SFF-8470 adapter with four SATA drive connectors on custom Centronics type slot bracket. Use this adapter in our storage cases when using an external Multi-Lane cable. Connect four internal SATA HDD's.
  • Four 7-pin Serial ATA2 Connectors
  • One Infiniband Multilane SFF-8470 Connector
  • 3Gb/s SATA2 Data Transfer Rate

$39.95 each

Multi-Lane to SATA PCI adapter

Infiniband Multilane SFF-8470 adapter with four SATA HDD connectors on a PCI slot bracket. Use this adapter on your host PC case and connect to your storage case using an external Multi-Lane cable. Connect the four internal SATA connections to either your motherboard or SATA RAID card.
  • Four 7-pin Serial ATA2 Connectors
  • One Infiniband Multilane SFF-8470 Connector
  • 3Gb/s SATA2 Data Transfer Rate
  • Built-in cross-over for straight through cable

$39.95 each

Multi-Lane SFF-8470 Cable

Multi-Lane cable is used to connect our storage cases to your host PC. Each end has a SFF-8470 thumb-screw connector to fit the SFF-8470 SATA port adapters above. Cable is wired straight-through. Choose from 1-meter or 2-meter, we also have 3-meter and 5-meter cables available special order.
One (1) meter long $51

Two (2) meter long $80

Serial ATA Power Adapter Cable

Adapts 5.25" IDE power cable to dual SATA HDD power connectors. Use this cable to power two SATA drives. Two adapters cables are required to run four drives.



$4.50 each



IDE Power Cable Splitter

Single IDE power cable to dual IDE power cable splitter.



$3.00 each
