HeatSync 2500 Mini-Client Order Form

Slim-line Slot-load

Slim-line, Slot-loading drive



No drive slot



Faceplate is machined to fit a slim-line slot-load DVD drive. Includes drive mounting brackets and hardware.

Compatible Slot-Load Blu-ray drives:

  • Panasonic Blu-ray UJ-135-A

  • Panasonic Blu-ray UJ-235-A

  • Sony NEC Optiarc BC-5600S

Compatible Slot-Load DVD drives:

  • Panasonic UJ-875-A
  • Panasonic UJ-875-B
  • Panasonic CW-8123
  • Panasonic CW-8124-B
  • Sony NEC Optiarc AD-7670S
  • Sony NEC Optiarc AD-7630A
  • Pioneer DVR-K06
  • Pioneer DVR-K05
  • Pioneer DVR-K04L

Note: Newer models not listed from the same manufacturers should also fit.

Select Faceplate Style:

With no drive slot or mounting - deduct $20

Slim-line Slot-load



Faceplate Color

Black case with Black faceplate

Black case with Silver faceplate

The aluminum case and all aluminum brackets are treated by an anodizing process for corrosion protection and a long lasting uniform finish. The rear portion of chassis is black anodized. The faceplate and buttons can be either black or silver.
Black case with Black faceplate
Black case with Silver faceplate
Laser Etched Logo Graphics





Faceplate is laser etched with custom graphics and lettering during the anodizing process. Graphics can include company logo, button labels, system specs, and warning labels. Artwork to be provided by customer. Artwork should be in a vector format for best results. Preferred file format is PDF or Adobe Illustrator.

Approximate minimum pricing per job:

  • Clear lettering on black case ($175)

  • Black lettering on silver case ($200)

Contact A-Tech for price quote. Normally we can run several faceplates for the same minimum charge or a small nominal fee per plate.

No Logo
With custom laser etched logo graphics
Rack Mount

Rack Mount Faceplate

(1U case shown for example)



The one-piece rack mount faceplate incorporates rack mounting into the faceplate for a seamless look. The overall width of the faceplate is 19". Oval mounting holes are centered at 18.312". Faceplate height is 3.50" (2U).
No rack mounting
With one-piece rack mount faceplate - add $75
VFD Display Mounting

VFD Mounting



Faceplate is machined with a cutout to fit a Matrix Orbital 2x20 display. Can be used with or without tinted filters. The blue filter looks nice with our blue power LED. Includes mounting hardware and spacers. Display and filter not included.

Supported models:

  • VK202-25-USB
  • VK202-25 (serial)

Note: Must select the dual 2.5" HDD mounting option with VFD. 3.5" HDD's will not fit with VFD.

No VFD mounting
With VFD mounting - add $45

IR Receiver Mounting

IR Receiver



Faceplate is machined with a cutout to fit a infrared receiver. Includes IR receiver, internal USB cable, and remote control. IR receiver works with Windows Vista and Windows 7 Home Premium and Ultimate versions -does not require drivers.

No IR receiver mounting
With IR receiver and remote - add $60

USB Port



USB Port



Face plate is machined with cutout to fit a USB 2.0 port adapter. Cable plugs into the USB header on your motherboard.

No USB Port
With USB Port - add $25
Hard Drive Mounting

3.5" Hard Drive Mounting



Dual 2.5" HDD with VFD

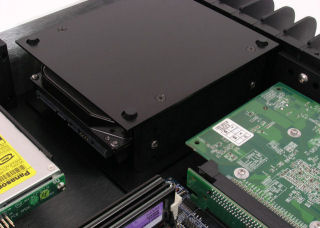

The Mini-Client 2500 includes a mini version of our Drive Isolation System used in our storage cases. The Drive Isolation System suspends the drives in a aluminum module which absorbs the heat from the drives. The drive module floats on specially designed isolation pads eliminating noise from vibration.

Note: Drive Isolation System is available for either two 3.5" HDD's or four 2.5" drives HDD's. Can not be used with VFD option.

Note: The Dual 2.5" HDD mounting option must be selected with the VFD option. The Drive Isolation System will not fit with a VFD.

No Drive mounts

Drive Isolation System (2) 3.5" HDD's  $35

Drive Isolation System (4) 2.5" HDD's  $35

Dual 2.5" HDD's with VFD  $15

HeatSync® Cooling System -MB

HeatSync® Cooling System

Intel DH57JG

HeatSync® Cooling System

Intel DG45FC

The HeatSync® Cooling System eliminates the need for fan cooling of the processor. With our cooling system installed, heat from the processor is transferred into the heatsink case for dissipation to the outside air. On some motherboards, a separate HeatSync® system is installed on the chipset.

Includes:

  • HeatSync® base for processor
  • HeatSync® base for chipset
  • Pre-bent heat pipes for processor and chipset
  • Aluminum clamping plates for heatsink case
  • Required installation hardware

No CPU HeatSync® Cooling System

With HeatSync® Cooling System for Intel DH57JG- add $140

With HeatSync® Cooling System for Intel DG45FC- add $140

With HeatSync® Cooling System for ZOTAC 9300-ITX- add $130

With HeatSync® Cooling System for ZOTAC ION- add $100

With HeatSync® Cooling System for VIA SN1800G- add $120

With HeatSync® Cooling System for VIA EX1500G- add $120

With HeatSync® Cooling System for Commel LV-677- add $120

With HeatSync® Cooling System for Commel LV-679- add $100

With HeatSync® Cooling System for MSI GM965- add $100

With HeatSync® Cooling System for Aopen i945GMti or i965GMt-LA- add $100



Note: We can quote the cost for other mini-ITX motherboards.

Video Card HeatSync® System

Video Card HeatSync® System

System (C) shown

Measure your card on the backside to determine which size mounting plate you will need

Silent, solid-state cooling system for video card processor. No moving parts to maintain or fail ensures reliable system operation for years. GPU base is precision machined from solid copper for optimum heat transfer from processor chip. Heatpipes are custom formed to match your motherboard and video card combination.

Includes:

  • Copper GPU base
  • Aluminum clamping plate
  • Precision spring retention system
  • Custom formed heatpipes

Maximum video card height:

  • 4.375" PCIe

Maximum video card length:

  • 7.25" with Drive Isolation System
  • 8.00" with Dual 2.5" HDD's
  • 11.50" with no HDD's

Maximum video card power:

  • Since this case is powered by an external AC adapter, the video card must only be powered by the PCIe bus slot. Video cards with extra power supply connectors require more power than the PS can provide and will not run.

System (A)

  • Two heatpipes
  • ATI Radeon X1600 and similar
  • Two-hole 2.14" diagonal spacing

System (B)

  • Two heatpipes
  • NVIDIA 6600, 6800
  • Two-hole 3.12" diagonal spacing

System (C)

  • Two heatpipes
  • NVIDIA 6800, 7600
  • ATI 3850
  • Four-hole 2.97" diagonal spacing

System (D)

  • Two heatpipes
  • ATI 2600 and similar
  • Four-hole 2.40" diagonal spacing

No Video HeatSync® System

With Video HeatSync® System (A) - add $80

With Video HeatSync® System (B) - add $80

With Video HeatSync® System (C) - add $80

With Video HeatSync® System (D) - add $80

Machined Billet Aluminum Case Feet

Billet Aluminum Case Feet



Enhance the appearance of your case with these beautifully machined billet aluminum case feet.







With Standard Rubber feet

With Black Aluminum Case Feet - add $25
With Silver Aluminum Case Feet - add $25

Shipping and Ordering Information

When will the case ship?

Standard lead time is 2-3 weeks depending on options and color choice.



Quantity Discounts?

Discounts are available on orders of two or more cases. Contact A-Tech Fabrication for more information.



HeatSync® 2500 Mini-Client Case ... $569 + options

Please select options above before adding to cart. Before checking out, be sure to add any additional accessories below so that they can be shipped with your case.

NOTE: The HeatSync® 2500 Mini-Client is also available as a complete, fully assembled and ready to run system, see Complete Systems for details. If you feel assembling this case looks more difficult than you care to handle, save time and let the experts at A-Tech Fabrication assemble it for you!

Case Accessories

Panasonic UJ-875-A DVD reader/writer:

Panasonic UJ-875-A DVD reader/writer

Slim-line SATA interface

Panasonic UJ-875-A is a slim-line DVD multi-burner for playback and recording of DVD's. The SATA interface requires a special slim-line power/data cable sold below.



Media
Write Read
DVD-RAM 5X 5X
DVD-R 8X 8X
DVD-R DL (Dual Layer) 6X 8X
DVD-RW 6X 8X
DVD+R 8X 8X
DVD+R DL (Double Layer) 6X 8X
DVD+RW 8X 8X
DVD-ROM Single Layer - 8X
DVD-ROM Dual Layer - 8X
CD-R 24X 24X
CD-RW 24X 24X
CD-ROM - 24X



$99.95 each
Panasonic UJ-135-A Blu-ray reader/DVD writer:

Panasonic UJ-135-A Blu-ray read/DVD write

Slim-line SATA interface

Panasonic UJ-135-A is a slim-line optical drive for Blu-ray/DVD playback and DVD recording. The SATA interface requires a special slim-line power/data cable sold below.



Media
Write Read
BD-ROM (Single Layer/Dual Layer) - 4X
BD-RE Single Layer - 2X
BD-RE Dual Layer - 2X
BD-R Single Layer - 4X
BD-R Dual Layer Dual Layer - 2X
DVD-RAM 5X 5X
DVD-R 8X 8X
DVD-R DL (Dual Layer) 4X 4X
DVD-RW 4X 6X
DVD+R 8X 8X
DVD+R DL (Double Layer) 6X 6X
DVD-ROM Single Layer - 8X
DVD-ROM Dual Layer - 6X
CD-R 24X 24X
CD-RW 16X 24X
CD-ROM - 24X



$219.95 each
Panasonic UJ-235-A Blu-ray reader/writer:

Panasonic UJ-235-A Blu-ray reader/writer

Slim-line SATA interface

Panasonic UJ-235-A is a slim-line Blu-ray optical drive for playback and recording of Blu-ray discs. The SATA interface requires a special slim-line power/data cable sold below.



Media
Write Read
BD-ROM (Single Layer/Dual Layer) - 4X
BD-RE Single Layer 2X 2X
BD-RE Dual Layer 2X 2X
BD-R Single Layer 4X 4X
BD-R Dual Layer Dual Layer 2X 2X
DVD-RAM 5X 5X
DVD-R 8X 8X
DVD-R DL (Dual Layer) 4X 4X
DVD-RW 6X 6X
DVD+R 8X 8X
DVD+R DL (Double Layer) 4X 4X
DVD-ROM Single Layer - 8X
DVD-ROM Dual Layer - 8X
CD-R 24X 24X
CD-RW 16X 24X
CD-ROM - 24X



$399.95 each
150 Watt DC-DC Power Converter

150 Watt DC-DC Power Converter

The picoPSU-150-XT is a compact high efficiency DC-DC converter that plugs directly into a 24-pin ATX MB connector. It features a built-in P4 power cable for the motherboard and a 4-pin Molex and SATA power connector for drives and accessories.
  • Over 96% efficiency
  • 24 pin ATX connector
  • 12 volts DC input
  • 150 watts output
  • 8A @ 12V
  • 6A @ 3.3V
  • 6A @ 5V
  • MTBF = 100,000 hours at 55C deg.
$49.50 each
150 Watt 12 Volt AC Power Adapter

150 Watt 12 Volt AC Power Adapter

Adapter Cable for 150w DC converter

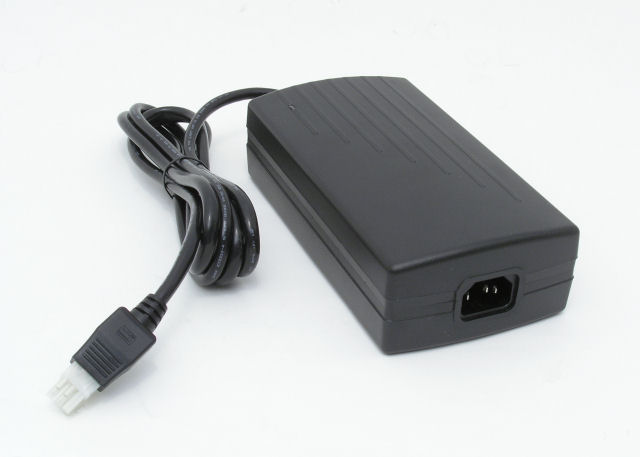

Fanless AC-DC power adapter. No overload fan or vent slots in sealed housing. 150 Watts output is the perfect match for the 150 watt DC-DC converter.
  • 100-240 VAC input
  • 12 Volts Output
  • 12.5 Amps, 150 watts output
  • 160 watt peak
  • 4 pin mini-din jack connector
  • Adapter cable for 150w DC converter included







$44.50 each

PS-150-XT Extension Cable

150 Watt PS with Extension Cable installed

This cable is used to add extra drive power connectors to the 150 Watt DC-DC Power Converter above. One end has a special connector to fit the extra header on the power supply, the other end has a standard SATA power connector and 4-pin Molex power connector.















$3.00

PCI Express x1 Riser Card
Use this adapter to install a PCI Express x1 card into a PCIe x1, x4, or x16 slot on motherboard.



$29.50

PCI Express x4 Riser Card
Use this adapter to install a PCI Express x4 card into a PCIe x4 or x16 slot on motherboard.



$29.50

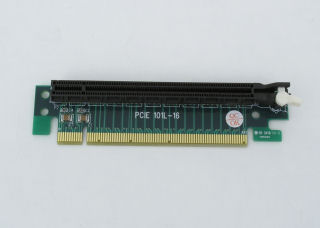

PCI Express x16 Riser Card
Use this adapter to install a PCI Express x16 card into a PCIe x16 slot on motherboard.



$29.50

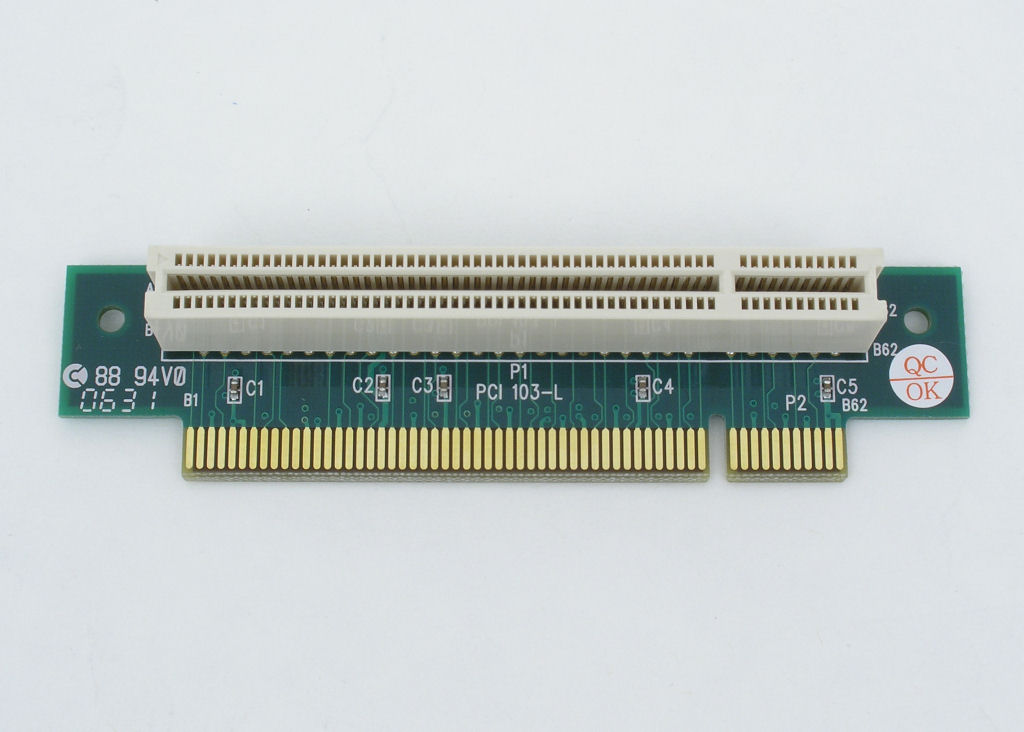

PCI Riser Card
Use this adapter to install a PCI card into the add-on slot next to motherboard.



$17.50

Slim-line SATA Power/Data Cable
This cable is used on slim-line SATA DVD and Blu-ray drives. One end has a special connector to fit the drive, the other end has a standard SATA connector and 5 volt 4-pin Molex connector.

$10.00

Slim-line Drive SATA/Power Adapter
This adapter allows a Serial ATA data cable to connect from the motherboard to a slim-line ATAPI DVD or Blu-ray drive. The back of the adapter also has a connector for a floppy power cable and CD-out. Includes mounting screws.

$25.00

Slim-line Drive IDE/Power Adapter
This adapter allows a standard 40-pin IDE data cable to connect from the motherboard to a slim-line ATAPI DVD drive. The back of the adapter also has a connector for a floppy power and CD-out. Includes mounting screws.

$12.00

USB to MB Header Adapter
This adapter allows you to connect internal USB devices (VFD, IR, PowerMate, Touch-Screen) directly to a USB header on the motherboard. Eliminates the need to route these cables externally. Each adapter has two ports.
$15.00 each
Serial ATA Data Cable

Serial ATA data cable with straight connectors at each end. The 12" long cable connect each drive to the MB or adapter card. Please note that most MB's and adapter cards may already include cables.



  $3.00      12" Length

Serial ATA Power Adapter Cable

Adapts 5.25" IDE power cable to dual SATA HDD power connectors. Use this cable to power two SATA drives.



$4.50 each
