Mass-Storage Case Order Form

Order Form

Each case includes:

Fully assembled all aluminum case
Mounting plates for four hard drives
Choice of two different rear panels
(4) 12" SATA internal drive cables
One set of isolation pads
(4) low-profile rubber feet
Hex driver tool for fast assembly

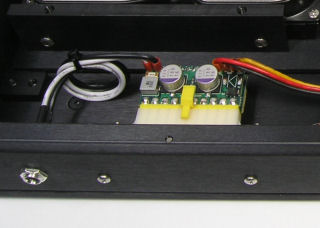

New Feature: Case now includes as standard option a power button controller and blue power LED (shown in picture to the right). This works with the new internal power supply option

Faceplate Color

Anodizing samples in clear and black

Aluminum case and all aluminum brackets are treated by a anodizing process for corrosion protection and a long lasting uniform finish. The rear chassis and internal parts have a black finish, the faceplate can be either black or silver.

Black faceplate

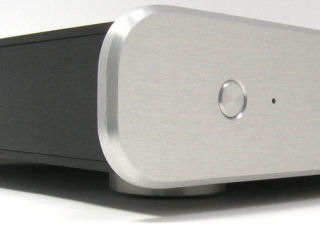

Silver faceplate

Laser Etched Logo Graphics

Faceplate is laser etched with custom graphics and lettering during the anodizing process. Graphics can include company logo, button labels, system specs, and warning labels. Artwork to be provided by customer. Artwork should be in a vector format for best results. Preferred file format is PDF or Adobe Illustrator.

Approximate minimum pricing per job:

Clear lettering on black case ($175)
Black lettering on silver case ($200)

Contact A-Tech for price quote. Normally you can run several faceplates for the same minimum charge or a small nominal fee per plate. Different types of cases can be combined on order to reduce total cost.

No Logo
With custom laser etched logo graphics

Rack Mount

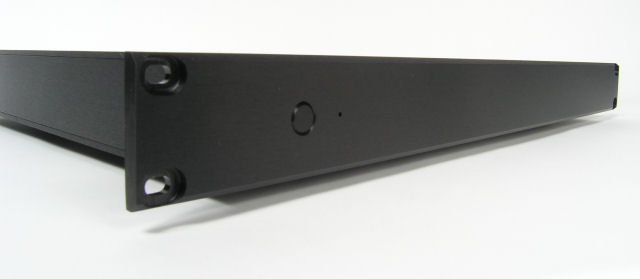

The extended one-piece rack mount faceplate incorporates the rack mounting into faceplate for a seamless look. The overall width of faceplate is 19", oval mounting holes are centered at 18.312", height is 1.75" (1U). Includes recessed screws with protective nylon contact washers.
No rack mounting With one-piece rack mount faceplate - add $40

Machined Billet Aluminum Case Feet

Enhance the appearance of your case with these machined billet aluminum case feet. The standard rubber feet fit inside these aluminum feet and can be upgraded later.

With Standard Rubber feet

With Black Aluminum Case Feet - add $30
With Silver Aluminum Case Feet - add $30

Rear Panel Option

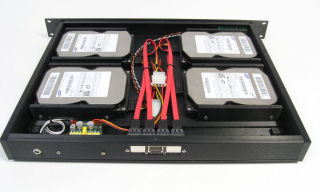

Multi-Lane Adapter and Power Supply Kit

Multi-Lane Plate with Power Supply Kit

This new rear panel option uses a Multi-Lane adapter with internal power supply. The adapter plate has a opening for the power jack. A separate external AC power adapter plugs into the power jack which provides the low voltage power for the drives. Order the power supply and AC power adapter separately in the case accessories section below.

Includes:

Multi-Lane to SATA2 4-port adapter
Mounting plate for Multi-Lane adapter
Power jack opening for external AC adapter
Power supply mounting bracket
Power supply wiring harness

Note: This feature is now a standard option only. A matching multilane lane adapter for your PC can be ordered below. We also stock 1 and 2 meter long multilane cables.

With Multi-Lane Adapter and Power Supply Kit - add $40

Shipping and Ordering Information

When will the case ship?

These cases are normally in stock and will ship within 1-3 weeks depending on other options and color choice.

Mass Storage Case ... $410 + options

Please select options above before adding to cart. Before checking out, be sure to add any additional accessories below so that they can be shipped with your case.

Mass Storage Case Accessories

120 Watt DC-DC Power Supply

The picoPSU-120 is the smallest snap-in 12V ATX dc-dc power supply. Plugs directly into a 20-pin ATX MB connector. 120 watts maximum output. 95% efficiency. To operate, an external AC power adapter is required, see below.

12 volts input
120 watts output
7A @ 12V
6A @ 3.3V
6A @ 5V

$49.95 each

12 Volt AC Power Adapter

External AC power adapter for use with the Mass Storage case.

100 to 240 VAC input
12 Volts Output
8.5 Amps
5mm x 2.5mm Connector

$39.00 each

Multi-Lane to SATA PCI adapter

Multi-Lane adapter with four SATA drive connectors on PCI slot bracket. Use this adapter on your HTPC case when using an external Multi-Lane cable. Connect the four internal SATA connections to either your motherboard or SATA RAID card.

Four 7-pin Serial ATA2 Connectors
One 4-Channel External Multi-Lane Connector
3Gb/s SATA2 Data Transfer Rate
Built-in cross-over for straight through cable

$39.95 each

Multi-Lane Cable
Multi-Lane cable is used to connect our storage cases to your host PC. Each end has thumb-screws to fit the SATA port adapters above. Cable is wired straight-through.
One (1) meter long $43
Two (2) meter long $67

Serial ATA Power Adapter Cable

Adapts 5.25" IDE power cable to dual SATA HDD power connectors. Use this cable to power two SATA drives. Two adapters cables are required to run four drives.

$4.50 each

IDE Power Cable Splitter

Single IDE power cable to dual IDE power cable splitter. One IDE splitter is required to run four drives.

$3.00 each
