Data Cable Products

Slim-line SATA Cable - 8"
This cable is used on slim-line SATA DVD and Blu-ray drives. One end has a special connector to fit the drive, the other end has a standard SATA connector and 5 volt 4-pin Molex connector. 8" long.

$10.00

Slim-line SATA Cable - 12"
This cable is used on slim-line SATA DVD and Blu-ray drives. One end has a special connector to fit the drive, the other end has a standard SATA connector and 5 volt 4-pin Molex connector. 12" long.

$11.00

Slim-line SATA Cable - 18"
This cable is used on slim-line SATA DVD and Blu-ray drives. One end has a special connector to fit the drive, the other end has a standard SATA connector and 5 volt 4-pin Molex connector. 18" long.

$12.00

Slim-line Drive SATA/Power Adapter
This adapter allows a Serial ATA data cable to connect from the motherboard to a slim-line ATAPI optical drive. The back of the adapter also has a connector for a floppy power cable and CD-out. Includes mounting screws. Note: Adapter is not for use with SATA drives, use the Slim-line SATA cables above. For use with older ATAPI style drives only.

$25.00

Slim-line Drive IDE/Power Adapter
This adapter allows a standard 40-pin IDE data cable to connect from the motherboard to a slim-line ATAPI DVD drive. The back of the adapter also has a connector for a floppy power cable and CD-out. Includes mounting screws.

$12.00

USB to MB Header Adapter
This adapter allows you to connect internal USB devices (VFD, IR, PowerMate, Touch-Screen) directly to a USB header on the motherboard. Eliminates the need to route these cables externally. Each adapter has two ports.
$15.00 each
NEW! USB 3.0 and eSATA RAID adapter

USB 3.0 and eSATA RAID adapter

This new RAID adapter has both high speed USB 3.0 and eSATA interface for versatility. Features an integrated hardware RAID controller to maximize performance. The RAID configuration is programmed using onboard jumpers for simple deployment. Software is included for RAID management and advanced RAID configuration.
  • USB 3.0 host port
  • eSATA host port
  • (5) SATA ports
  • RAID0 (Striping)
  • RAID5 (Parity)
  • RAID10 (Mirrored Striped)
  • JBOD (Concatenation)

$115 each

eSATA RAID adapter

eSATA RAID adapter

The eSATA RAID adapter features an integrated hardware RAID controller to maximize performance. The RAID configuration is programmed using onboard jumpers for simple deployment. Software is included for RAID management and advanced RAID configuration.
  • RAID0 (Striping)
  • RAID5 (Parity)
  • RAID10 (Mirrored Striped)
  • JBOD (Concatenation)

$95 each

eSATA cable

External eSATA cable used to connect the eSATA adapter above to the eSATA port on the host PC.

One meter eSATA cable - $14

Two meter eSATA cable - $21

Single SAS to SATA Centronics adapter

SAS SFF-8088 adapter with four SATA HDD connectors on a Centronics type slot bracket. Use this adapter in our storage cases for connecting to four SATA HDD's. One Mini-SAS cable is required for connecting to a 4-port RAID card with an external back panel SFF-8088 connector.
  • Eight 7-pin Serial ATA2 Connectors
  • One SFF-8088 External SAS Connectors

$52.50 each

Dual SAS to SATA Centronics adapter

SAS adapter with eight SATA HDD connectors on a Centronics type slot bracket. Use this adapter in our storage cases for connecting to eight SATA HDD's. Two Mini-SAS cables are required for connecting to a 8-port RAID card with two external back panel SFF-8088 connectors
  • Eight 7-pin Serial ATA2 Connectors
  • Two SFF-8088 External SAS Connectors

$106.95 each

Mini-SAS SFF-8088 Cable

Mini-SAS cable is used to connect our storage cases to your host PC. Each end has a SFF-8088 connector. Use for connecting RAID card to the SFF-8088 SATA adapter above. Choose from 1-meter or 2-meter, we also have 4-meter and 8-meter cables available special order.
One (1) meter long $56

Two (2) meter long $82
Multi-Lane to SATA PCI adapter

Infiniband Multilane SFF-8470 adapter with four SATA HDD connectors on a PCI slot bracket. Use this adapter on your host PC case and connect to your storage case using an external Multi-Lane cable. Connect the four internal SATA connections to either your motherboard or SATA RAID card.
  • Four 7-pin Serial ATA2 Connectors
  • One Infiniband Multilane SFF-8470 Connector
  • 3Gb/s SATA2 Data Transfer Rate
  • Built-in cross-over for straight through cable

$39.95 each

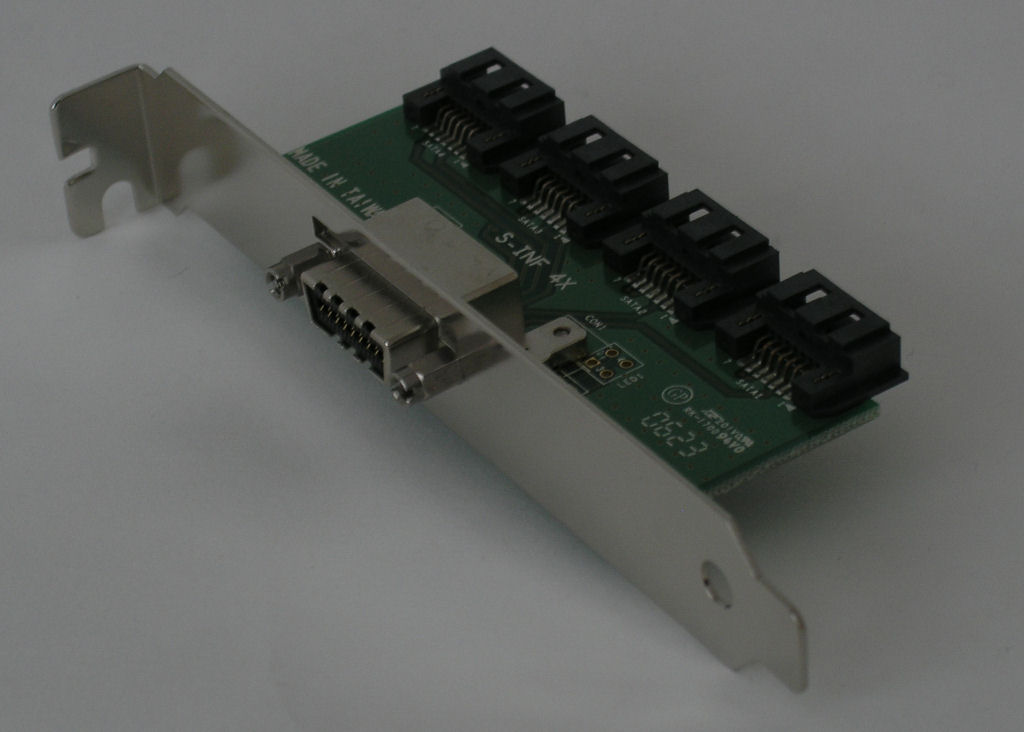

Multi-Lane to SATA Centronics adapter

Infiniband Multilane SFF-8470 adapter with four SATA drive connectors on custom Centronics type slot bracket. Use this adapter in our storage cases when using an external Multi-Lane cable. Connect four internal SATA HDD's.
  • Four 7-pin Serial ATA2 Connectors
  • One Infiniband Multilane SFF-8470 Connector
  • 3Gb/s SATA2 Data Transfer Rate

$39.95 each

Multi-Lane SFF-8470 Cable

Multi-Lane cable is used to connect our storage cases to your host PC. Each end has a SFF-8470 thumb-screw connector to fit the SFF-8470 SATA port adapters above. Cable is wired straight-through. Choose from 1-meter or 2-meter, we also have 3-meter and 5-meter cables available special order.
One (1) meter long $51

Two (2) meter long $80
Ultra-Slim IDE Data Cable for DVD drive
This ultra-slim cable is very compact and easy to bend and route though the case. Use this longer cable to connect the door mounted DVD drive to the motherboard.
  • Ultra-Slim to save space and promote airflow
  • Extra flexible for easy bending & twisting
  • 23" length single device cable
  • Ultra DMA (ATA 133/100)
  • High quality cable and connectors
  • Black nylon mesh sleeve
$18.00

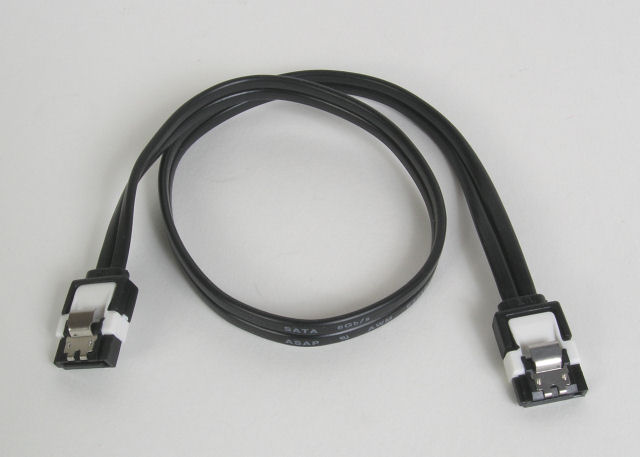

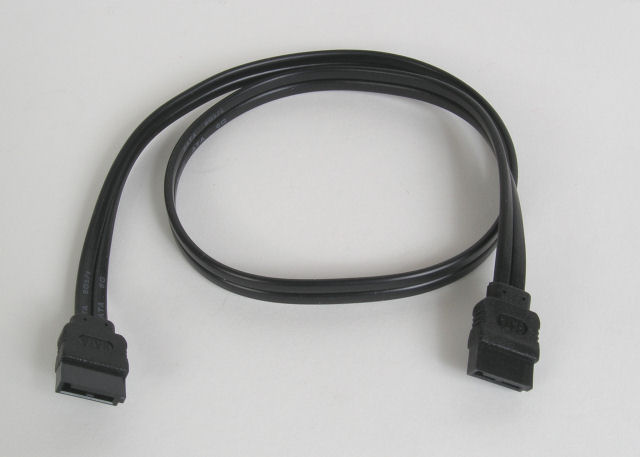

Serial ATA Data Cable

Serial ATA data cable with straight connectors at each end. The 12" long cable is included with the Mass Storage 4X Case to connect each drive to the rear panel port.



  $3.00      12" Length



  $3.50      20" Length

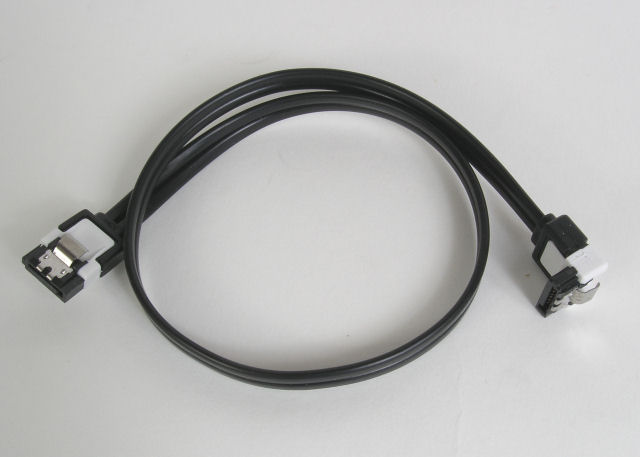

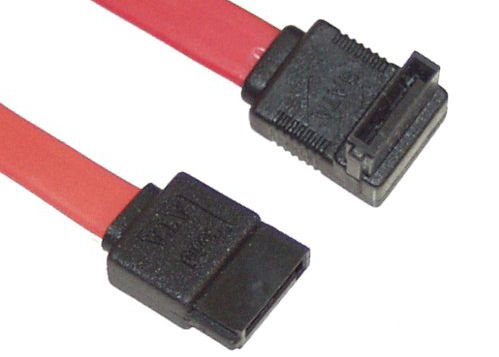

20" Right-Angle Serial ATA Cable

Serial ATA data cable with a straight connector on one end and right angle connector on the other. Overall length is 20".



$4.00 each
