Specialty HTPC Products
|
| 2.5" HDD to PCI Bracket Kit |
 |
| This drive bracket kit allows you to install one 2.5"
HDD into a free PCI slot. Works with any computer case. |
|
$15.00 |
|
| 2.5" HDD to Dual PCI Bracket Kit |
 |
| This drive bracket kit allows you to install up to
three 2.5" HDD's into two free PCI slots. Works with any computer
case. |
|
$20.00 |
|
| 2.5" HDD to IDE Bracket Kit |
 |
| This drive bracket kit allows you to install up to two
2.5" HDD's into the space of a 3.5" IDE drive. Thick
aluminum plates absorb and dissipate heat. Works with any
computer case. |
|
$15.00 |
|
| Adjustable
Temperature Switch |
Adjustable
Temperature Switch |
This adjustable temperature switch allows you to fine
tune the activation temperature for use in many applications. The
switch reacts only to thermal affects and requires no electricity to
operate. The multi-turn potentiometer provides a wide adjustment
range. Made from corrosion resident 304 stainless steel to withstand
harsh environments. High temperature lead wire is 8" long. Includes
two mounting clamps.
- Range: -100 to 600 F (-73 to 316 C)
- Sensitivity: As low as 1° F
- 5 Amp @ 120 VAC
- 3 Amp @ 240 VAC
- 1 Amp @ 120 VDC
|
|
$75.00 |
|
| Automatic Fan Speed Controller |
Automatic Fan Speed Controller |
| This Fan
Speed Controller is compact in size for easy mounting in any location. Linear response curve for smooth
ramp up. Load stabilized output for consistent speed. 12 volt
start-up circuit spins fan at full speed during start up to ensure reliable
operation. One controller can be used with two case fans using a
fan splitter cable. Most motherboards can handle the current of two small
fans per connector. Typical speed range is around 1700---2500
RPM. If you want to constantly run your fan at a precise RPM- get
the fan
speed cable instead. |
|
$15.00 |
|
| Thermal Switch |
Thermal Switch |
This switch reacts only to thermal
affects and requires no electricity to operate. Normally open switch
closes at rated temperature sending power to fan. Can be used in
conjunction with fan speed controllers for maximum versatility.
Swivel bracket allows switch to be mounted to any flat surface.
- Normally open circuit
- Switch closes at rated temperature
- Max load 8.5A @ 12 VDC
- Voltage Rating 250 VAC
40 C. Degree Thermal Switch .... $15.00
Resets (opens circuit) at
32C
|
| 50 C. Degree Thermal Switch ....
$15.00 Resets (opens
circuit) at 39C
|
|

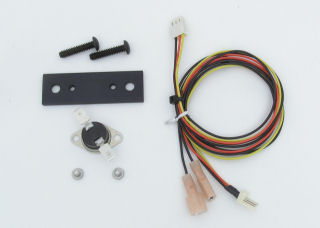

| Temperature Switch Kit |
 Temperature Switch Kit |
Use this kit in the
HeatSync 6000 Case for
silent fan operation. Allows case fan to remain off when
system is in low demand. After system has been under load, switch
turns the fan on after case temperature reaches 40 deg C. Includes
bracket for mounting switch to heatpipe clamping plates on case.
This switch requires no electricity to operate increasing
reliability. Can be used in conjunction with fan speed controllers
for maximum versatility.
- 40 deg C. Temperature Switch
- Switch Harness for fan
- Bracket for HeatSync 6000 case
- Mounting Hardware
$35.00
|
|
| Black Anodized Aluminum Slot Covers |
 |
| These custom made black aluminum slot covers will
dress up your HTPC case. Blends in perfectly with our black cases.
Each cover is precision laser-cut, formed, and anodized. |
|
$7.50 set of four (4) |
|
| USB to MB Header Adapter |
 |
| This adapter allows you to connect internal USB
devices (VFD, IR, PowerMate, Touch-Screen) directly to a USB header
on the motherboard. Eliminates the need to route these cables
externally. Each adapter has two ports. |
|
$15.00 each |
|
|
External Power Supply ATX Adapter
Kit
|
 |
|
Use an external power supply
with the Mass-Storage 8X Case. This kit replaces the ATX PS with a small
cool running DC-DC power converter and 80mm exhaust fan.
Detailed Information
|
|
|
Multi-Lane Adapter and Power Supply Kit
|
 |
|
A new rear panel is now available for all owners of previous versions of the
Mass-Storage 4x case. This panel allows a single Multi-Lane data cable to be
used for simpler connections up to six feet long. Another optional feature
with this panel is the internal DC-DC power supply so that the case can be
plugged into power away from the host PC.
Detailed Information
|
|
| Mass-Air-GPU Heatsink System |
 |
- Silent, high performance heatsink system
- Works with ATI Radeon video cards
- High flow heatsink with copper heat spreader
- Formed aluminum high flow
air duct
- Two mounting screws with preload springs
More Details |
|
|
|
