Horizontal vs. Vertical Stacking Test

stacked antenna 023.jpg (57681 bytes) vertical stacking 001.jpg (60718 bytes)

Description:

I used two Blake JBX21WB antennas. To confirm that the antennas were working properly and matched in performance I tested each antenna separately first. I used a Spectrum Analyzer to check the waveform for each station. The antennas were very closely matched.



For horizontally stacking I mounted the antennas to my ATF-V100 Vertical Tilter using a custom made boom assembly. This boom assembly uses a fiberglass tube to prevent the boom from becoming a active element in the antenna system. Each antenna mount clamps to the boom and allows for easy adjustments to the spacing between antennas. I had already determined in previous tests that 36-44" spacing worked best, so I used 40".



For vertically stacking I simply mounted both antennas to a common mast. I tested a 32" and 17" spacing.

See below for results and my comments following the tests.



Results Definition:

Note: Signal level refers to the Dish 6000 indicator which measures the signal quality based on percentage of errors. As long as the indicator stays above 48-50%, the signal will lock. I assume that if you have over 50% errors, the Dish 6000 does not have enough good signal to decode properly. A reading of 100% would indicate no errors in signal. I have found that at 47% I will see pixelation in the picture and below 46% the picture will drop out completely.



**For easier printing, click on image to bring up a separate page containing just results.

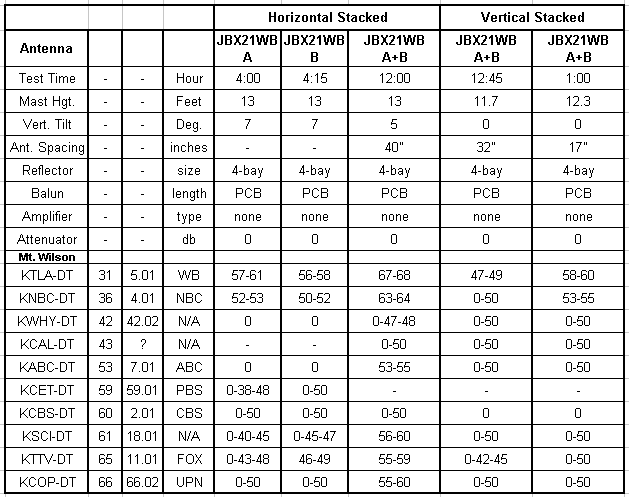

Test#1, Date: 03/03/02



Spectrum Analyzer Waveforms:

(click on image to enlarge)

Mt. Wilson Stations (15 mile distance)

Antenna A

Antenna B

Horizontal Stacked

36" spacing

Vertical Stacked

32" spacing

Vertical Stacked

17" spacing


Channel 31


Channel 31


Channel 31


Channel 31


Channel 31


Channel 36


Channel 36


Channel 36


Channel 36


Channel 36


Channel 42


Channel 42


Channel 42


Channel 42


Channel 42


Channel 53


Channel 53


Channel 53


Channel 53


Channel 53


Channel 59


Channel 59


Channel 59

N/A

N/A


Channel 60


Channel 60


Channel 60


Channel 60


Channel 60


Channel 61


Channel 61


Channel 61


Channel 61


Channel 61


Channel 65


Channel 65


Channel 65


Channel 65


Channel 65


Channel 66


Channel 66


Channel 66


Channel 66


Channel 66

Conclusion:
