The T-1000 is a compact Low-Noise Digital to Analog Converter allowing you to playback digital files from your PC or MAC through the USB port and output high quality analog stereo sound directly to your headphones, amplifier, or audio receiver.
Enclosure Information
  • Enclosure is 100% made in the USA
  • Precision CNC machined from heat-treated aluminum for durability

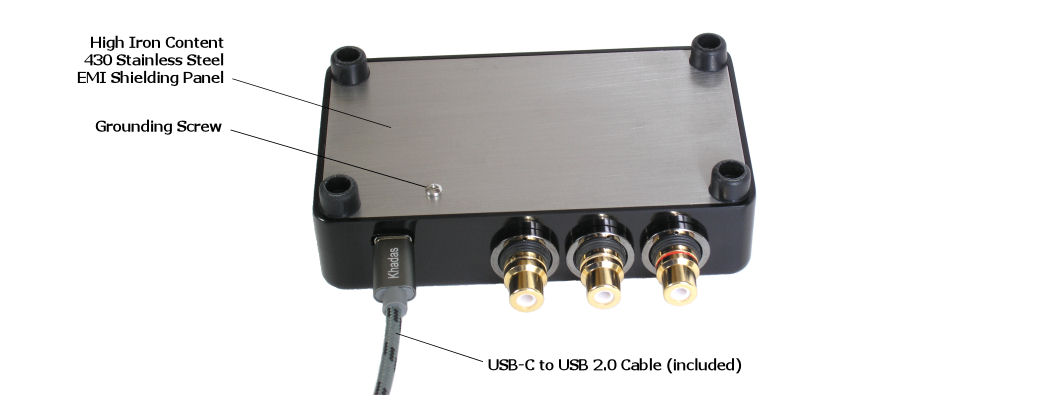

  • High iron content 430 stainless steel access panel reduces EMI noise
  • Grounding screw bonds enclosure, access panel, and internal circuit board
  • USB-C port provides 5 volts DC, no external power supply required

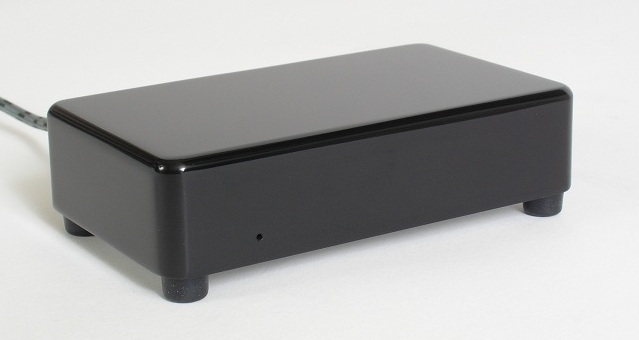

  • White LED power indicator through pin hole on rear panel
  • Hand polished black anodized finish
  • Dimensions - HxWxD = 1.2 x 4.2 x 2.6 inches, (31x109x64mm)
Khadas Tone Board Specifications
  • Processor: XMOS XU208-128-QF48, 8 Cores, 500 MIPS
  • DAC: ES9038Q2M 32-Bit Stereo
  • THD+N: ≤ 0.000337% @1KHz
  • SNR: ≥ 120dB @ 10Hz~20KHz
  • DNR: ≥ 120dB @ 10Hz~20KHz
  • Crosstalk: ≥ 127dB @ 10Hz~20KHz
  • Frequency Response: 0.08 dB @ 10Hz~20KHz
  • Sample Rate: PCM: Up to 384KHz @ 32bit
  • Clock Jitter: Reference Clock Jitter 3ps
  • S/PDIF IN: Up to 192KHz
  • Audio Formats: APE2/FLAC/OGG/WAV/ACC/ALAC/MP3/WMA
  • Compatibility: Windows PC, Linux PC, macOS, Raspberry Pi, Android, LibreELEC

T-1000 DAC with Khadas Tone Board
Includes:
  • Fully assembled T-1000 enclosure
  • Khadas Tone Board installed
  • USB-C to USB 2.0 cable
$199 each

T-1000 Enclosure only
Includes:
  • T-1000 machined aluminum enclosure
  • Stainless steel bottom panel
  • Soft isolation footers
  • Note: requires Khadas Tone Board -generic version (not included)
$69 each
